Technical Specifications for 1754A1X

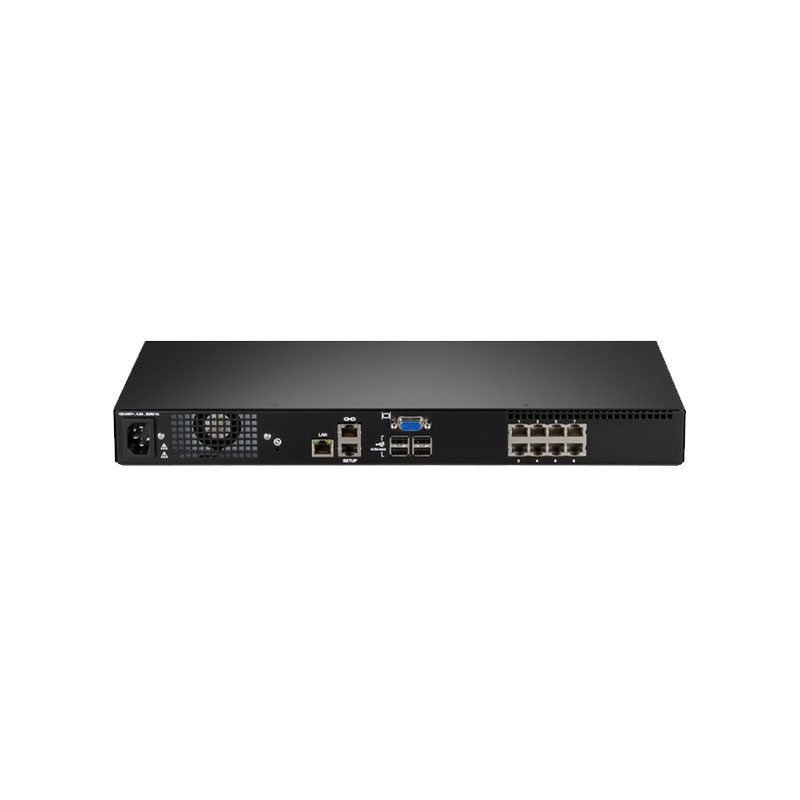

IBM Rack-Mountable Local 1X8 Console Manager KVM Switch
Manufacturer: IBM
Part Number: 1754A1X
Product Type: KVM Switch
Number of Ports: 8
Dimensions: 16.51 x 43.18 x 43.69 cm; Weight: 1.9 kg
Battery Requirement: No batteries included
Device Type: KVM Switch – 8 ports, cascadable
Enclosure Type: Rack-mountable 1U
Port Configuration: 8 x KVM ports
Local User Capacity: 1 local user
Server Connection: Twisted Pair, CAT5
Maximum Resolution: 1600 x 1200
Expansion and Connectivity: Interfaces: 8 x
Power Supply: Internal power supply included
Miscellaneous: Rack Mounting Kit is included
Dimensions: Width: 17 in, Depth: 6.5 in, Height: 1.9 in, Weight: 4.19 lbs
Environmental Conditions: Minimum Operating Temperature: 32 °F, Maximum Operating Temperature: 122 °F, Humidity Range: 20 – 80%.
