605870-005 Technical Specifications

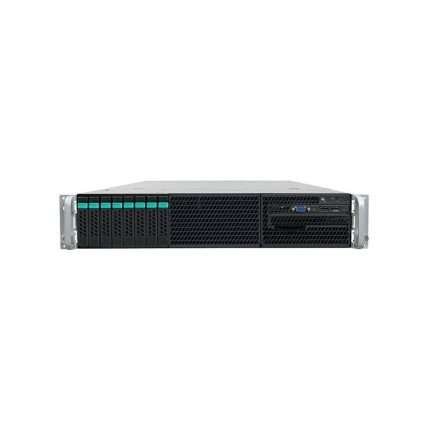

HP Smart Buy Proliant DL385 G7 Server with AMD Opteron 6176SE
GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 605870-005
Product Name: HP Proliant DL385 Gen7 2U Rack Mount Server (Smart Buy).
PROCESSOR & CHIPSET:
Processor Type: AMD Opteron 6176SE (2.3 GHz, 12MB Level 3 Cache, 105W)
Multi-Core Technology: 12-Core
64-Bit Computing: Yes
Installed Qty: 2
Max Supported Qty: 2
Upgradability: Yes
Chipset Type: AMD SR5690/SP5100
CACHE MEMORY:
Cache Memory Type: L3 Cache
Installed Size: 24 MB
Cache Per Processor: 12 MB
RAM:
Installed Size: 16 GB
Max Supported Size: 256 GB
Technology: DDR3 SDRAM, Advanced ECC
Memory Speed: 1333 MHz
Form Factor: DIMM 240-Pin
Configuration Features: 4 x 4 GB
Supported RAM: PC3-10600, Registered and Unbuffered options.
STORAGE & STORAGE CONTROLLER:
Hard Drive: None
Optical Drive: DVD-RW, Serial SATA
Internal Storage: 8 SFF SAS/SATA HDD Bays
Storage Controller Type: 1 x RAID, Plug-In Card, PCI Express 2.0 x8
Controller Interface Type: Serial ATA-300 / SAS 2.0
Storage Controller Name: Smart Array P410I with 1GB FBWC
Supported RAID Levels: 0, 1, 5, 6, 10, 50, 60
Buffer Size: 1 GB
DISPLAY & GRAPHICS CONTROLLER:
Graphics Controller Type: Integrated
Graphics Processor: ATI ES1000
Maximum Resolution: 1600 x 1200 (16 Bit), 1280 x 1024 (32 Bit)
NETWORKING:
Networking: Integrated Network Adapter
Ethernet Ports: 4 x Gigabit Ethernet
Ethernet Controller: 2 x HP NC382I
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 3
Features: Wake On LAN (WOL), ACPI Support, PXE Support
Compliant Standards: IEEE 802.3, 802.3U, 802.3AB
POWER DESCRIPTION:
Power Device Type: Hot Plug Power Supply
Power Redundancy: Yes (1+1 scheme)
Installed Qty: 2
Max Supported Qty: 2
Voltage Required: AC 120/230 V (50/60 Hz)
Power Provided: 750 Watt
