646901-001 Technical Specifications

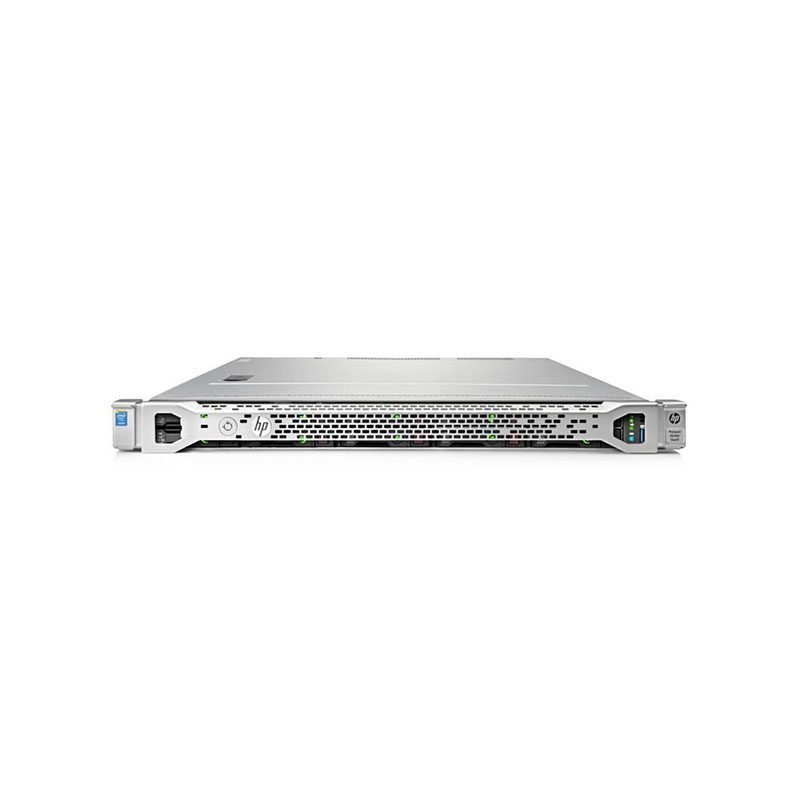

HP Proliant DL360p G8 1U Rack Server with Intel Xeon E5-2630 2.3GHz
GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 646901-001
Product Name: Proliant DL360p G8 – 2-Way 1U Rack Mount
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5-2630, 2.30 GHz
Multi-Core Technology: Hexa-Core (6 Core)
64-Bit Computing: Yes
Installed Quantity: 1
Max Supported Quantity: 2
Upgradability: Yes
Chipset Model: Intel C600
CACHE MEMORY:
Type: L3 Cache
Installed Size: 15 MB
Cache Per Processor: 15 MB
MEMORY:
Installed RAM Size: 16 GB / 768 GB (MAX)
Technology: DDR3 SDRAM
Memory Speed: 1333 MHz
Memory Specifications Compliance: PC3-10600
Form Factor: DIMM 240-PIN
Configuration Features: 4 X 4 GB
Supported RAM: PC3-12800, PC3-10600 (Registered, Load-Reduced, Unbuffered, Advanced ECC)
STORAGE:
Hard Drive: None
Optical Storage Type: None
Storage Controller Type: 1 X RAID – Integrated – PCI Express 3.0 X8
RAID Levels Supported: 0, 1, 5, 10, 50
NETWORKING:
Ethernet Ports: 4 X Gigabit Ethernet
Remote Management: Integrated Lights-Out 4
POWER:
Power Supply: Hot Plug, 460 Watt
DIMENSIONS:
Height: 1.7 Inch, Width: 17.1 Inch, Depth: 27.5 Inch, Weight: 32.0 Lbs
