646905-001 Technical Specifications

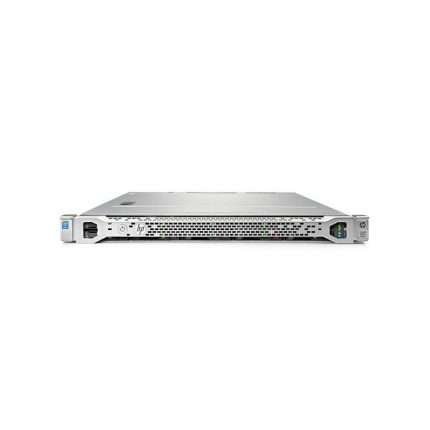

HP Proliant DL360P G8 Performance Server
GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Part Number: 646905-001
Product Name: Proliant DL360P G8 – 2-Way 1U Rack Mount (Performance Model)
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5-2690 / 2.9 GHz
Cores: 8 (Octa-Core)
64-Bit Computing: Yes
Installed Quantity: 2
Max Supported Quantity: 2
Upgradability: Yes
Chipset: Intel C600
CACHE MEMORY:
Type: L3 Cache
Installed Size: 40 MB
Cache Per Processor: 20 MB
MEMORY:
Installed RAM: 32 GB (Max: 384 GB)
Memory Type: DDR3 SDRAM
Speed: 1600 MHz
Specification Compliance: PC3-12800
Form Factor: DIMM 240-Pin
Total Memory Slots: 24
Features: Registered, Quad Channel Memory Architecture, HP SmartMemory
Configuration: 4 x 8 GB
STORAGE:
Hard Drive: None
Storage Controller: 1 x RAID – Plug-In Card – PCI Express 3.0 x8
Interface: Serial SATA-600 / SAS 2.0
Controller Name: HP Smart Array P420i/2GB with FBWC
RAID Levels: 0, 1, 5, 10, 50
Buffer Size: 2 GB
NETWORK:
Networking: PCI Express x4
Ethernet Ports: 2 x 10 Gigabit Ethernet
Controller: HP 530FLR
Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Remote Management: iLO 4
Features: Wake On LAN (WOL), PXE Support
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad
