686714-S01 Technical Specifications

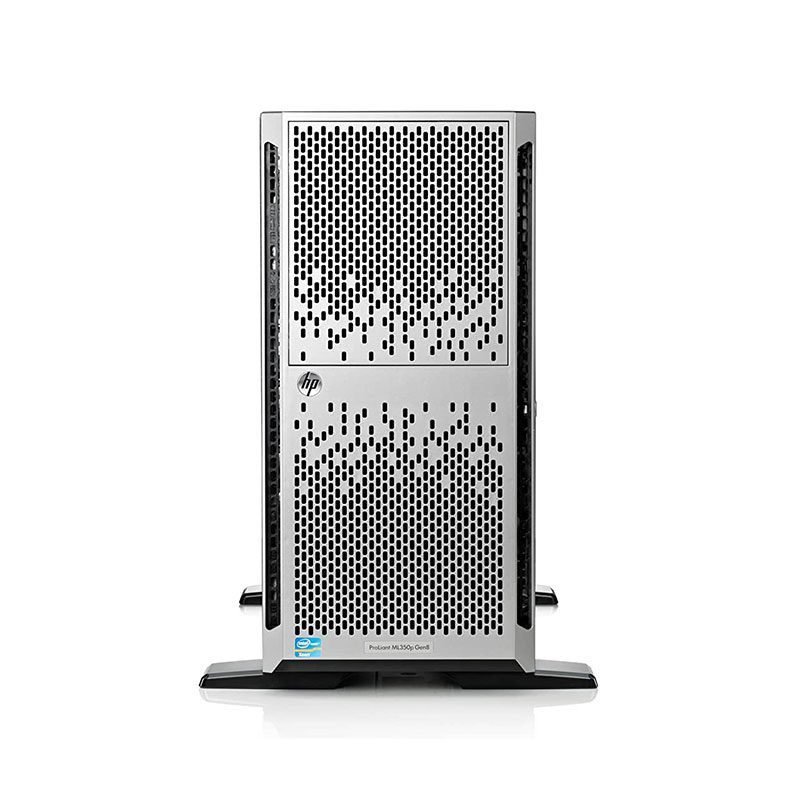

HP ProLiant ML350p G8 5U Tower Server with Intel Xeon E5-2620 2GHz
GENERAL INFORMATION :
Manufacturer: Hewlett Packard
Manufacturer Part Number: 686714-S01
Product Name: ProLiant ML350p Gen8 2-Way 5U Tower Server S-Buy
PROCESSOR & CHIPSET :
Processor Type: Intel Xeon E5-2620 / 2.0 GHz
Number of Cores: 6 (Hexa-Core)
64-Bit Computing: Yes
Installed Quantity: 1
Maximum Supported Quantity: 2
Upgradability: Upgradable
Chipset Type: Intel C600
CACHE MEMORY :
Cache Memory Type: L3 Cache
Installed Size: 15 MB
Cache Per Processor: 15 MB
MEMORY :
Installed Size: 8 GB
Maximum Size: 786 GB
Technology: DDR3 SDRAM
FEATURES :
Registered, Single Rank, Quad Channel Memory Architecture, HP SmartMemory
Configuration Features: 2 X 4 GB
Supported RAM: PC3-12800 – 384 GB – Registered, PC3-10600 – 128 GB – Unbuffered – Advanced ECC
STORAGE & STORAGE CONTROLLER :
Hard Drive: None
Optical Drive Type: DVD-ROM – Serial SATA
Storage Controller Type: 1 X RAID – Plug-In Card – PCI Express 3.0 X8
NETWORK & COMMUNICATION :
Networking: Integrated Network Adapter
Ethernet Ports: 4 X Gigabit Ethernet
EXPANSIONS & CONNECTIVITY :
Expansion Bays Total: 3 (Total) / 2 (Free) X Front Accessible – 5.25in X 1/2h
INTERFACES & PORTS :
1 X Serial – RS-232 – 9 Pin D-Sub (DB-9)
1 X Display / Video – VGA – 15 Pin HD D-Sub (HD-15)
8 X Hi-Speed USB – 4 Pin USB Type A (4 Front, 4 Rear)
