741158-B21 Technical Specifications

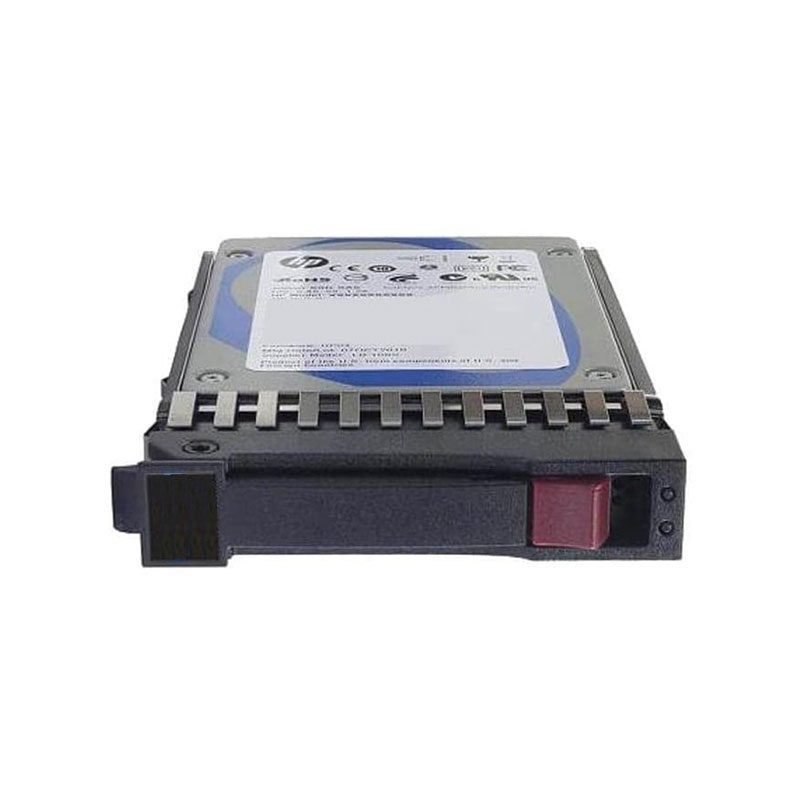

HP 800GB 2.5″ SAS 12GBPS High Endurance SFF SC Enterprise PERFORMANCE Hot Swap Solid State Drive
MAIN SPECIFICATIONS:
Product Description: HPE Mixed Use – Solid State Drive – 800 GB – SAS 12GB/s
Type: Hot-Swap Solid State Drive (SSD)
Capacity: 800 GB
NAND Flash Memory Type: Multi-Level Cell (MLC)
Form Factor: 3.5 inch LFF
Interface: SAS 12GB/s
Data Transfer Rate: 1.2 Gbps
Features: 3 DWPD, Digitally Signed Firmware
Dimensions (WxDxH): 0.6 in
Bundled With: HPE Smart Carrier Converter
Designed For: Various ProLiant Gen9 and Gen10 models including DL120, DL160, DL360, and DL380 series.
EXTENDED SPECIFICATIONS:
Device Type: Hot-Swap Solid State Drive
Capacity: 800 GB
NAND Flash Memory Type: MLC
Form Factor: 3.5 LFF
Interface: SAS 12GB/s
Features: 3 DWPD, Digitally Signed Firmware
Height: 0.6 in
Bundled With: HPE Smart Carrier Converter
PERFORMANCE:
Drive Transfer Rate: 1.2 Gbps (External)
Internal Data Rate: 1075 Mbps (Read) / 1025 Mbps (Write)
4KB Random Read: 120,000 IOPS
4KB Random Write: 90,000 IOPS
