754520-B21 Technical Specifications

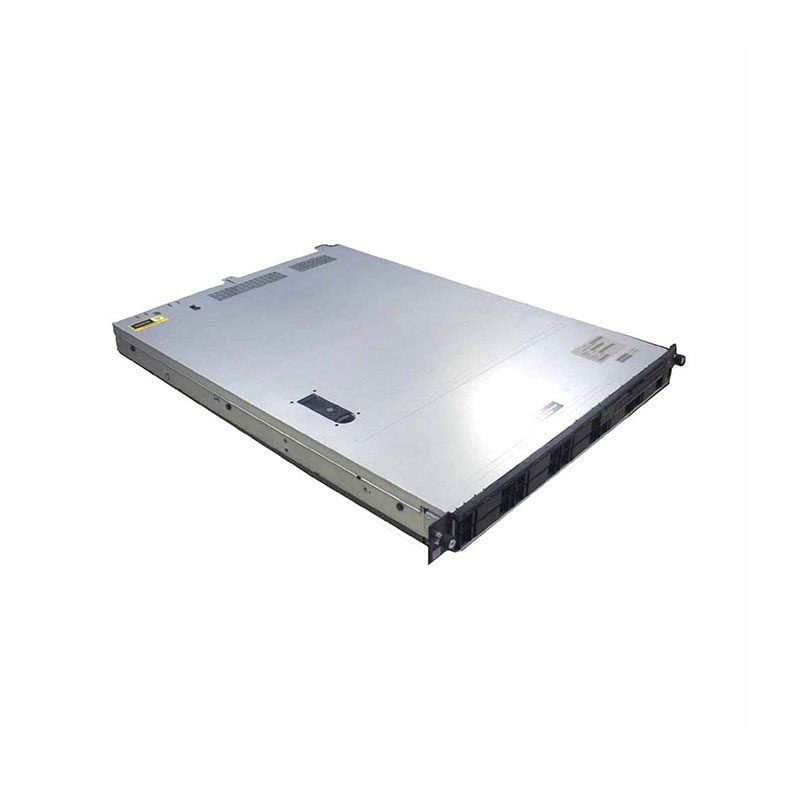

HP Proliant DL160 Gen9 – CTO Chassis Overview
GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 754520-B21
Product Name: HPE Proliant DL160 Gen9 1U Rack Server (CTO Chassis)
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon
Installed Quantity: 0
Maximum Supported Quantity: 2
Upgradability: Upgradable
Chipset Type: Intel C610
MEMORY:
Installed Size: None
Maximum Capacity: 512 GB
Memory Technology: DDR4 SDRAM
Form Factor: DIMM 288-PIN
RAM Slots: 24 x DDR4 RAM Slots
Features: PC4-17000 – 256 GB – Registered, PC4-17000 – 512 GB – Load-Reduced
STORAGE & CONTROLLER:
Hard Drive: None
Storage Controller Type: 1 x RAID – Integrated
Controller Interface Type: SATA 6GB/S
Storage Controller Name: HP Dynamic Smart Array B140i
Channel Quantity: 8
RAID Levels: RAID 0, RAID 1, RAID 5
DISPLAY & GRAPHICS:
Graphics Controller Type: Integrated
Graphics Processor: Matrox G200eh2
Video Interfaces: VGA
NETWORKING:
Type: Integrated
Interface (Bus) Type: PCI Express 2.0 x2
Ethernet Ports: 2 x Gigabit Ethernet
Ethernet Controller: HP NC361I
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management: Integrated Lights-Out 4
Features: Wake On LAN (WOL), PXE Support
Compliant Standards: IEEE 802.3, IEEE 802.3U, IEEE 802.3AB, IEEE 802.1AS, IEEE 802.3AZ
