755258-B21 Technical Specifications

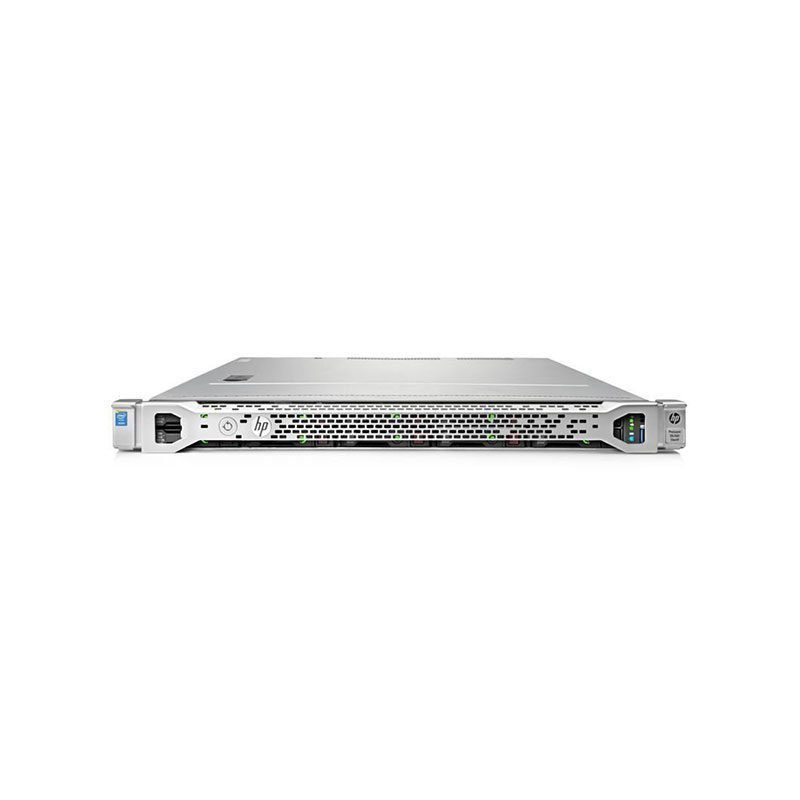

HP Proliant DL360 G9 CTO Chassis – No CPU, No RAM
GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 755258-B21
Product Name: Proliant DL360 Gen9 Rack Mount (1U)
PROCESSOR & CHIPSET:
Number of Installed Processors: 0
Maximum Supported Quantity: 2
Upgradability: Yes
RAM:
Installed Size: None
Maximum Capacity: 768GB
Technology: DDR4 SDRAM
Form Factor: DIMM 288-Pin
Memory Slots: 24 x DDR4 RAM Slots
Features: HP SmartMemory
Supported RAM Types:
PC4-17000 – 384GB – Registered
PC4-17000 – 768GB – Load-Reduced
STORAGE & CONTROLLER:
Hard Drive: None
Storage Controller Type: 1 x SATA – Integrated – PCI Express 2.0 x4
Controller Interface: Serial ATA-600
Storage Controller Name: HP Dynamic Smart Array B140i
Channel Quantity: 10
RAID Levels: 0, 1, 10, 5
NETWORK & COMMUNICATION:
Networking Type: Integrated
Ethernet Ports: 4x Gigabit Ethernet
Ethernet Controller: HP 331i
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management: Integrated Lights-Out 4
Features: Wake On LAN (WoL), PXE Support
Standards Compliance: IEEE 802.3, IEEE 802.3U, IEEE 802.3AB
POWER DESCRIPTION:
Device Type: Hot Plug Power Supply
Power Redundancy: Optional (1+1 with Optional Power Supply)
Installed Quantity: 0
Max Supported Quantity: 2
DIMENSIONS & WEIGHT:
Width: 17.1 in
Depth: 27.5 in
Height: 1.7 in
Weight: 27 lbs
