755262-B21 Technical Specifications

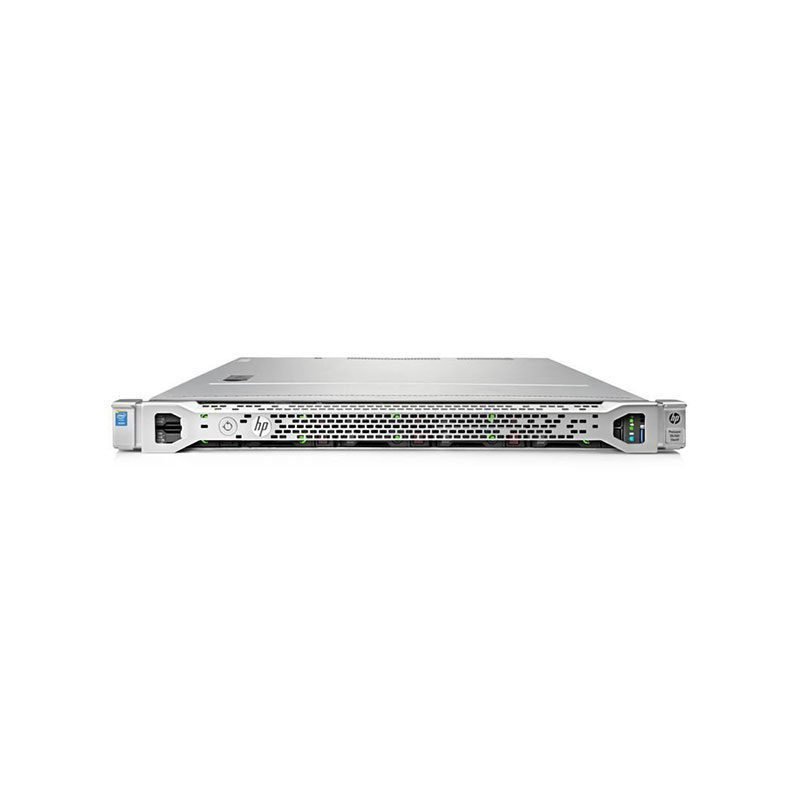

HP Proliant DL360 G9 Base Model featuring 1x Intel Xeon E5-2630v3/2.4GHz 8-Core
GENERAL INFORMATION:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 755262-B21
Product Name: Proliant DL360 Gen9 1U Rack Mount Server (Base Model)
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5-2630v3/2.4 GHz
Multi-Core Technology: 8 Core
64-Bit Computing: Yes
Installed Processor Qty: 1
Max Supported Processor Qty: 2
Chipset Model: Intel C610
Upgradability: Upgradable
CACHE MEMORY:
Cache Memory Type: L3 Cache
Installed Size: 20MB
Cache Per Processor: 20MB
MEMORY:
Installed RAM Size: 16GB
Max Supported Size: 384GB
Technology: DDR4 SDRAM – Advanced ECC
Memory Speed: 1866 MHz
Memory Specification Compliance: PC4-17000
Form Factor: DIMM 288-Pin
Memory Slots: 24 x DDR4 RAM Slots
Features: Registered, Online Spare Memory, Quad Channel Memory Architecture, HP SmartMemory
Configuration Features: 1x 16GB
STORAGE:
Hard Drive: None
STORAGE CONTROLLERS:
Storage Controller Type: 1 x RAID – Plug-In Card – PCI Express 3.0 x8
Controller Interface Type: Serial ATA-600 / SAS 3.0
Storage Controller Name: Smart Array P440ar with 2GB FBWC
RAID Level: RAID 0, RAID 1, RAID 5
Buffer Size: 2GB
DISPLAY & GRAPHICS:
Graphics Controller Type: Integrated
Graphics Processor: Matrox G200
Video Interfaces: VGA
NETWORKING:
Ethernet Ports: 4x Gigabit Ethernet
Ethernet Controller: HP 331i0
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 4
Features: Wake On LAN (WOL), PXE Support
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
POWER DESCRIPTION:
Device Type: Power Supply – Hot-Plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (With Optional Power Supply)
Installed Qty: 1
Max Supported Qty: 2
Voltage Required: AC 120/230 V (50/60 Hz)
Power Provided: 500 Watt
80 Plus Certification: 80 Plus Platinum
