780017-S01 Technical Specifications
HP Proliant DL360 G9 featuring Intel Xeon 6-Core E5-2609v3 at 1.9GHz, 8GB DDR4 SDRAM, and Smart Array H240ar.
GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 780017-S01

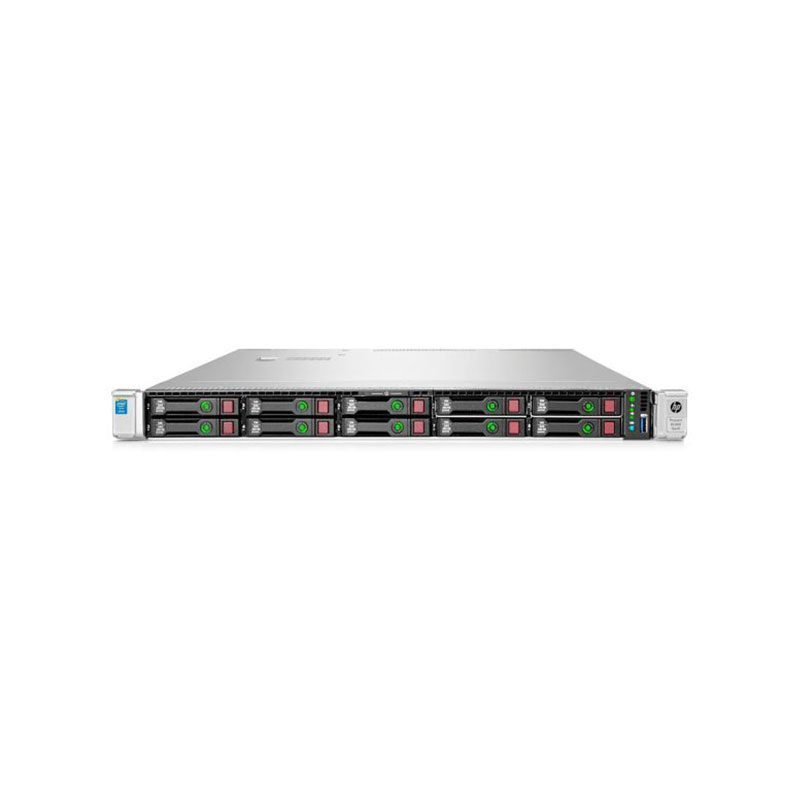

Product Name: Proliant DL360 Gen9 – 1U Rack Mount Server (S-Buy)
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5-2609v3 at 1.9GHz
Quickpath Interconnect: 6.4GT/s
Number of Cores: 6
64-Bit Computing: Yes
Compatible Processor Socket: FCLGA2011-3
Installed Quantity: 1
Max Supported Quantity: 2
Chipset Type: Intel C610 Series
CACHE MEMORY:
Cache Memory Type: Smart Cache
Installed Size: 15MB
MEMORY:
Installed Size: 8GB (1x8GB) Dual Rank X4
Technology: DDR4 SDRAM PC4-17000R (DDR4-2133)
Form Factor: DIMM 288-Pin
Total Memory Slots: 24 DDR4 Slots
STORAGE:
Hard Drive: None
Optical Drive: None
STORAGE CONTROLLERS:
Storage Controller Name: Smart Array H240ar
Disk Drive: Up to 12 Gb/s SAS, 6 Gb/s SATA
Maximum Capacity: 90TB SAS, 90TB SATA
RAID Support: RAID 0, 1, 5, 10, 50
NETWORK & COMMUNICATION:
Ethernet Controller: HP Ethernet 1GB 4-Port 331i Adapter
Remote Management Protocol: Integrated Lights-Out 4
POWER DESCRIPTION:
Device Type: Flex Slot Platinum Hot-Plug Power Supply
Installed Quantity: 1
Power Provided: 500 Watt.
