780018-S01 Technical Specifications

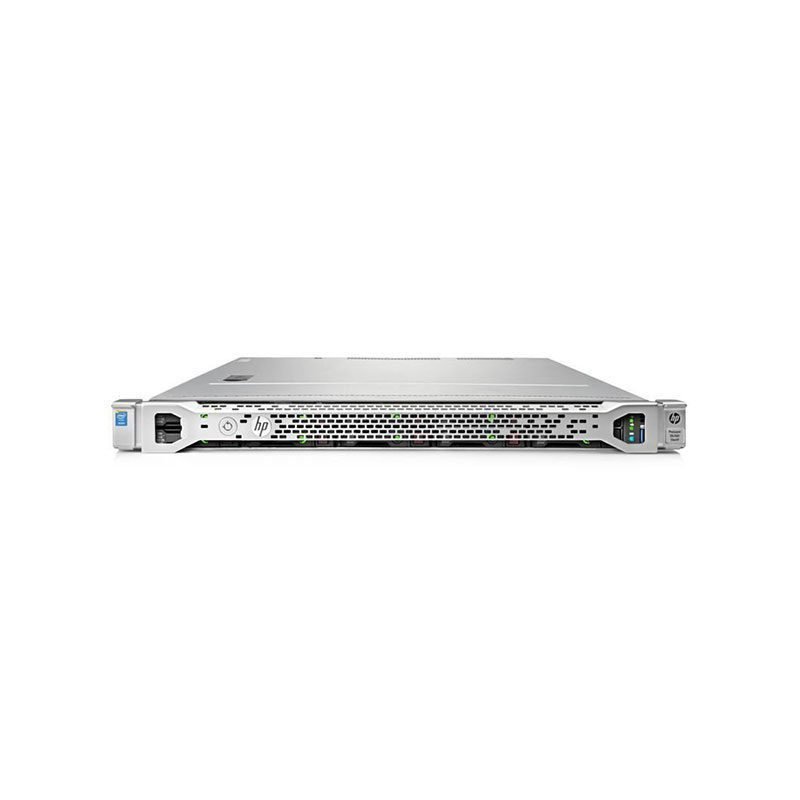

HP Proliant DL360 G9 Rack Server with Intel Xeon E5-2620v3 2.4GHz
GENERAL INFORMATION:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 780018-S01
Product Name: Proliant DL360 Gen9 1U Rack Mount Server (S-Buy)
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5-2620v3 at 2.4 GHz
Multi-Core Technology: 6 Cores
64-Bit Computing: Yes
Installed Processor Quantity: 1
Maximum Supported Processor Quantity: 2
Chipset Model: Intel C610
Upgradability: Yes, Upgradable
CACHE MEMORY:
Cache Memory Type: L3 Cache
Installed Size: 15 MB
Cache Per Processor: 15 MB
MEMORY:
Installed RAM Size: 16GB
Maximum Supported Size: 384 GB
Technology: DDR4 SDRAM – Advanced ECC
Memory Speed: 1600 MHz
Memory Specification Compliance: PC4-17000
Form Factor: DIMM 288-Pin
Memory Slots: 24 x DDR4 RAM Slots
Features: Registered, Online Spare Memory, Quad Channel Memory Architecture, HP SmartMemory
STORAGE:
Hard Drive: Not included
STORAGE CONTROLLERS:
Type: 1 x RAID – Plug-In Card – PCI Express 3.0 x8
Controller Interface Type: Serial SATA-600 / SAS 3.0
Storage Controller Name: HP H240ar Smart Host Bus Adapter
Channel Quantity: 8
RAID Levels: RAID 0, RAID 1, RAID 5
NETWORKING:
Ethernet Ports: 8x Gigabit Ethernet
Ethernet Controllers: HP 331i, HP 331flr
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 4
Features: Wake On LAN (WOL), PXE Support
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
