791050-S01 Technical Specifications

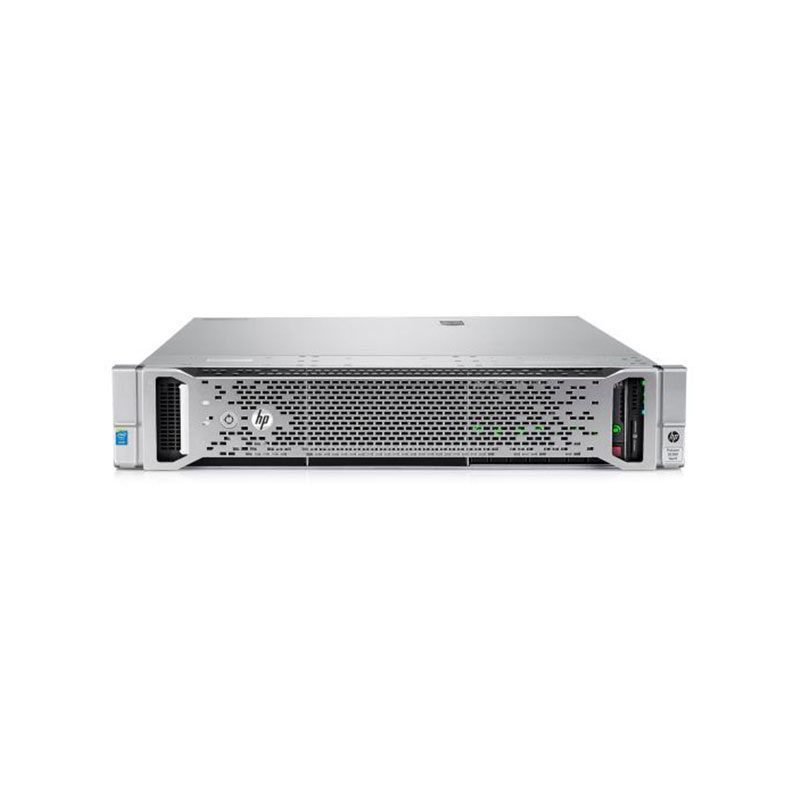

HP Proliant DL560 Gen9 2U Rack Server Overview
GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 791050-S01
Product Name: Proliant DL560 Gen9 – 2U Rack Mount Server (Smart Buy)
PROCESSOR & CHIPSET:
CPU: Intel Xeon E5-4627v3 / 2.6 GHz
Max Turbo Speed: 3.2 GHz
Number of Cores: 10 Cores
CPU Quantity: 2
Max CPU Quantity: 4
Upgradability: Yes
Main Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2
Socket: LGA2011
CACHE MEMORY:
Type: Smart Cache
Installed Size: 25 MB
Per Processor: 25 MB
MEMORY:
Installed Size: 64 GB (Max: 1.5 TB)
Technology: DDR4 SDRAM – Advanced ECC
Speed: 2133 MHz
Compliance: PC4-17000
Slots: 24 x DDR4 RAM
Features: Registered, Memory Mirroring, Online Spare Memory, Quad Channel Architecture, HP SmartMemory
Configuration: 4 x 16 GB
Supported RAM: PC4-17000
STORAGE:
Hard Drive: None
Optical Drive: None
STORAGE CONTROLLERS:
Type: 1 x RAID – PCI Express 3.0 x8
Controller Interface: SATA 6Gb/s / SAS 12Gb/s
Name: Smart Array P440ar with 2GB FBWC
Channels: 26
RAID Levels: 0, 1, 5, 6, 10, 50, 60
Buffer Size: 2 GB
NETWORK & COMMUNICATION:
Bus Type: PCI Express 2.0 x8
Ethernet Ports: 2 x 10 Gigabit
Controller: HP 533FLR-T
Protocol: 10 Gigabit Ethernet
Remote Management: Integrated Lights-Out 4
Features: Wake On LAN, PXE Support
Compliant Standards: IEEE 802.3, 802.3X, 802.3AD (LACP)
POWER DESCRIPTION:
Device Type: Hot Plug Power Supply
Redundancy: Yes (1+1)
Installed Quantity: 2
Max Supported: 2
Nominal Voltage: AC 120/230 V (50/60 Hz)
Power Provided: 1200 Watt
80 Plus Certification: 80 Plus Platinum.
