7X01X9BJ00 Technical Specifications

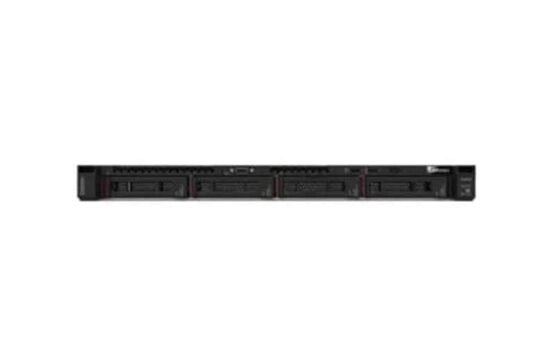

Lenovo ThinkSystem SR630 Dual Xeon Gold 6130
Specification
The server features a 1U rack-mount form factor and supports up to two Intel Xeon Gen 2 processors, including Bronze, Silver, Gold, or Platinum variants. Each processor can have up to 28 cores with core speeds reaching 3.8 GHz and a maximum cache of 38.5 MB. Memory support includes 24 DIMM slots with speeds up to 2933 MHz. Chipset: Intel C624.
Memory configurations allow for a capacity of up to 3 TB with DIMMs alone, while combining with persistent memory can reach up to 7.5 TB in App Direct Mode. Memory protection features include ECC and various scrubbing techniques.
Drive bays
The server can accommodate up to 6 hot-swap drive bays, with options for 3.5-inch and 2.5-inch drives. Supported drive types include SAS, SATA, and NVMe SSDs, providing extensive flexibility for storage solutions. The system is designed to handle diverse workloads, making it ideal for modern data centers.
