7X06A0BMCN Technical Specifications

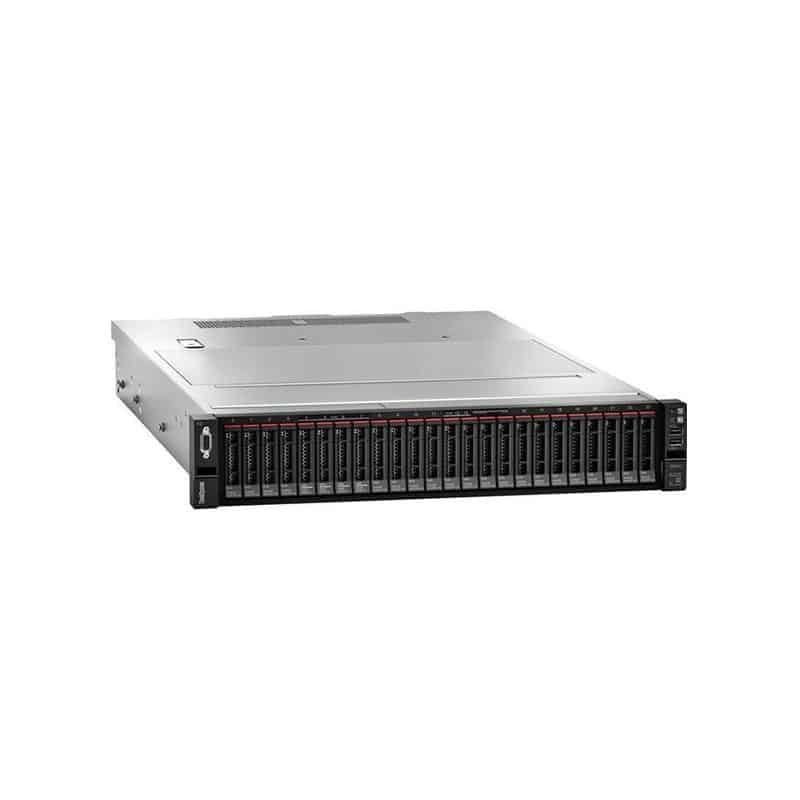

Lenovo ThinkSystem SR650 Server
This 2U rack server accommodates up to two 2nd Generation Intel® Xeon® Platinum processors, each with a maximum power of 205W. It supports a staggering memory capacity of up to 9TB, utilizing 24 DIMM slots with 128GB DIMMs and Intel® Optane™ DC Persistent Memory, operating at 2666/2933MHz TruDDR4 speeds. The server offers up to 7 PCIe 3.0 expansion slots, including a dedicated slot for RAID adapters. Drive configurations allow for up to 14 hot-swap 3.5″ bays or 24 hot-swap 2.5″ bays, with options for 12 AnyBay and 24 NVMe bays, plus 2 M.2 boot drives configured in RAID 1. Hardware RAID support includes up to 24 ports with flash cache and 16 ports for HBA. Security features encompass TPM 1.2/2.0, PFA, and hot-swap capabilities for drives, fans, and PSUs, ensuring reliability even in continuous operations at 45°C. Networking is facilitated by 2/4-port 1GbE and 10GbE LOM options, alongside a dedicated management port. Power configurations are Energy Star 2.0 compliant, offering various hot-swap/redundant options from 550W to 1600W, including 80 PLUS Platinum and Titanium ratings. System management is handled by an embedded XClarity Controller, with support for Microsoft, Red Hat, SUSE, and VMware operating systems. For more details, visit lenovopress.com/osig.
