7X06A0BXCN Technical Specification

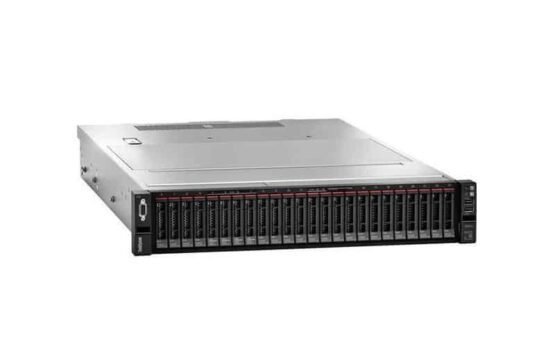

Lenovo ThinkSystem SR650 Server
This 2U rack server accommodates up to two 2nd Generation Intel® Xeon® Platinum processors (up to 205W). It supports a massive memory capacity of up to 9TB through 24 DIMM slots (utilizing 128GB DIMMs) and Intel® Optane™ DC Persistent Memory, with memory speeds of 2666/2933MHz TruDDR4. The server features up to 7 PCIe 3.0 expansion slots with various riser configurations, including one dedicated PCIe slot for RAID adapters. For storage, it provides flexibility with up to 14x 3.5″ or 24x 2.5″ hot-swap bays, as well as support for up to 12x AnyBay and 24x NVMe bays, along with 2x M.2 boot drives configured in RAID 1. RAID support includes hardware solutions with up to 24 ports and flash cache, and HBA support with up to 16 ports. Security features include TPM 1.2/2.0, hot-swap/redundant drives, fans, and PSU, ensuring continuous operation at 45°C. Networking options include 2/4-port 1GbE and 10GbE LOM, plus a dedicated management port. Power options consist of hot-swap/redundant configurations ranging from 550W to 1600W, 80 PLUS certified. System management is facilitated by the XClarity Controller and associated tools. Supported operating systems include Microsoft, Red Hat, SUSE, and VMware; for further details, visit lenovopress.com/osig.
