7X06A0H7EA Technical Specification

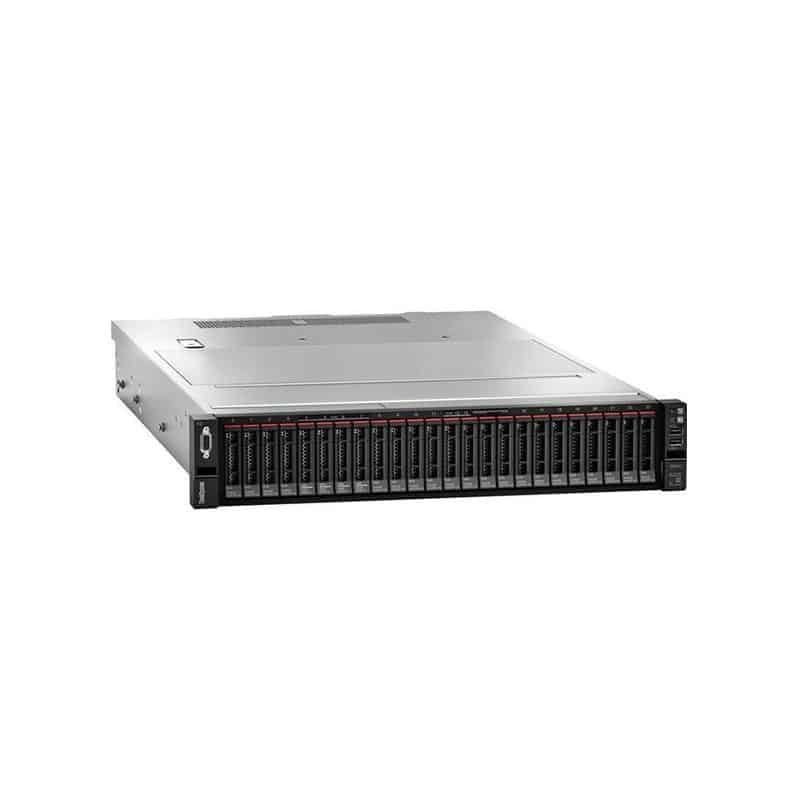

Introducing the LENOVO THINKSYSTEM SR650 Server, designed for optimal performance in a compact 2U rack form factor. It supports up to 2 second-generation Intel® Xeon® Platinum processors, with a maximum power rating of 205W. Memory capacity can reach up to 9TB through 24 DIMM slots, utilizing 128GB DIMMs along with Intel® Optane™ DC Persistent Memory, operating at 2666MHz or 2933MHz TruDDR4 speeds.
The server accommodates up to 7 PCIe 3.0 expansion slots, with options for a dedicated PCIe slot for RAID adapters. Storage capabilities include up to 14 hot-swap 3.5” drive bays or 24 2.5” bays, allowing for flexibility with up to 12 AnyBay or 24 NVMe bays, and supports 2 M.2 boot drives in RAID 1 configuration.
For data security, it features hardware RAID support up to 24 ports, along with TPM 1.2/2.0, redundant hot-swap drives, and light path diagnostic LEDs. Networking options include 2/4-port 1GbE and 10GbE LOM, plus a dedicated management port. Power options are Energy Star 2.0 compliant, with choices of hot-swap redundant power supplies ranging from 550W to 1600W. The server is compatible with various operating systems such as Microsoft, Red Hat, SUSE, and VMware.
