7X08A05MNA Technical Specifications

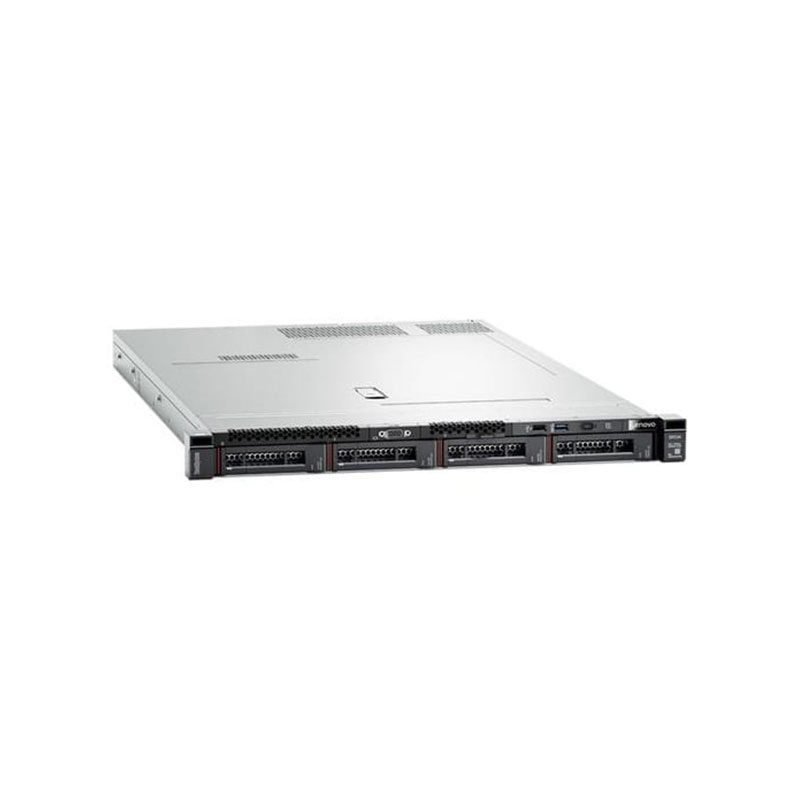

Lenovo Thinksystem SR530 with Intel Xeon Silver 4114
General Information
Product Name: Thinksystem SR530 with Intel Xeon Silver 4114, 10C 2.2G, 16GB, 750W
Product Line: ThinkSystem
Product Series: SR530
Model Number: 7X08A05MNA
Type: Server
Controllers
Controller Type: 12Gb/s SAS
RAID Supported: Yes (Levels 0, 1, 5, 6, 10, 50, 60, JBOD)
Display & Graphics
Graphics Controller: Matrox G200
I/O Expansions
Total Expansion Bays: 8 (Hot Swappable)
Internal 2.5″ Bays: 8
Memory
Standard Memory: 16 GB DDR4 SDRAM
Total Memory Slots: 12 (1 Occupied)
Network & Communication
Ethernet Technology: Gigabit Ethernet
Power Description
Input Voltage: 120 V AC / 230 V AC
Power Supplies Supported: 2 (1 Installed)
Maximum Power Supply: 750 W
Storage
Total Hard Drive Capacity: None
Processor & Chipset
Processors Supported: 2 (1 Installed)
Processor Manufacturer: Intel
Processor Type: Xeon Silver
Model: 4114 (Deca-core, 2.20 GHz)
Software
Operating System: None
Physical Characteristics
Form Factor: Rack (1U)
Dimensions: Height 1.7″, Width 19″, Depth 30.6″
