7X08A05PNA Technical Specifications

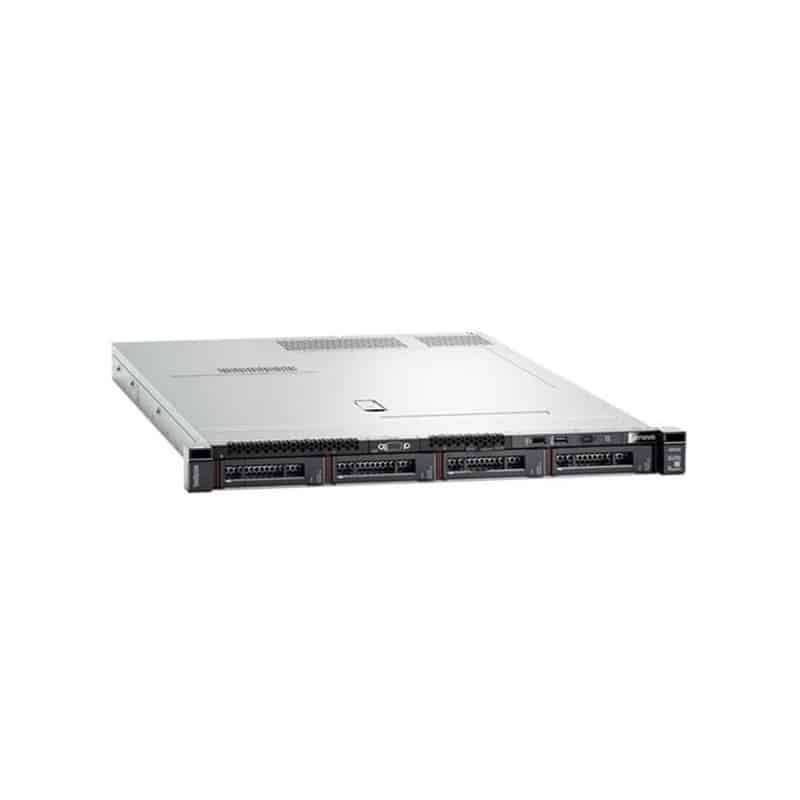

Lenovo ThinkSystem SR530 with Intel Xeon Gold 6126
General Information
Product Name: ThinkSystem SR530 with Intel Xeon Gold 6126, featuring 12 cores at 2.6 GHz, 16GB RAM, and a 750W power supply.
Product Line: ThinkSystem
Product Series: SR530
Product Model: 7X08A05PNA
Product Type: Server
Controllers
Controller Type: 12Gb/s SAS
RAID Support: Yes, with levels 0, 1, 5, 6, 10, 50, 60, and JBOD.
Display & Graphics
Graphics Controller: Matrox G200
I/O Expansions
Total Expansion Bays: 8
Internal 2.5″ Bays: 8
Hot Swappable Bays: Yes
Memory
Standard Memory: 16 GB
Memory Technology: DDR4 SDRAM
Total Memory Slots: 12 (1 occupied)
Network & Communication
Ethernet Technology: Gigabit Ethernet
Power Description
Input Voltage: 120 V AC / 230 V AC
Power Supplies Supported: 2 (1 Installed)
Maximum Power Supply: 750 W
Storage
Total Hard Drive Capacity: None
Processor & Chipset
Processors Supported: 2 (1 Installed)
Processor Manufacturer: Intel
Processor Type: Xeon Gold
Processor Model: 6126
Processor Cores: 12 (Dodeca-core)
Processor Speed: 2.60 GHz
Software
Operating System: None
Physical Characteristics
Form Factor: Rack
Rack Height: 1U
Dimensions: Height 1.7″, Width 19″, Depth 30.6″.
