7X99A084NA Technical Specifications

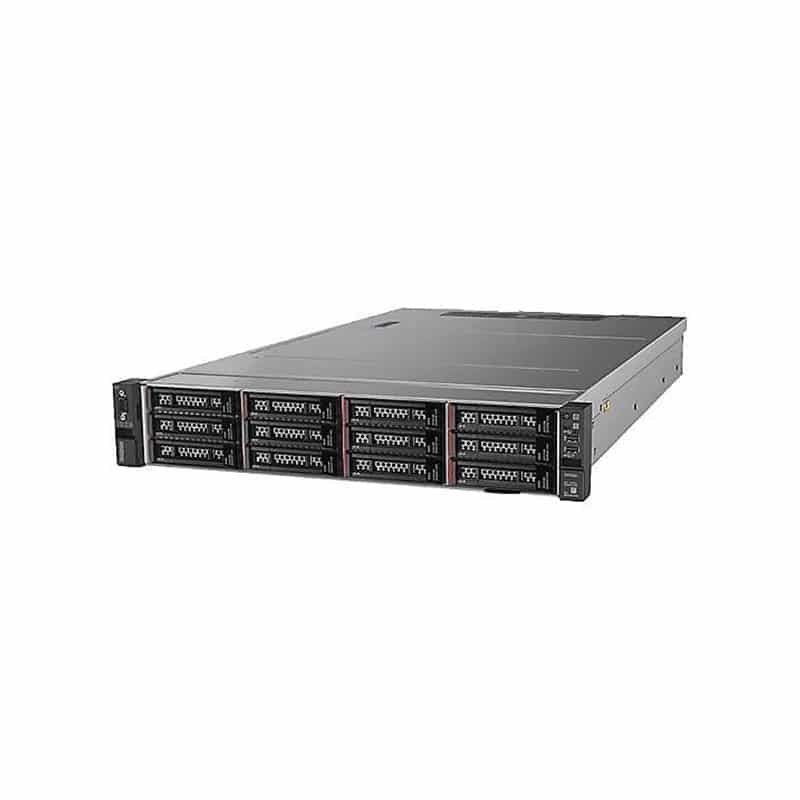

Lenovo ThinkSystem SR590 – Rack-Mountable
Processor
Clock Speed: 2.2 GHz
Installed Quantity: 1
Manufacturer: Intel
Max Supported Quantity: 2
Max Turbo Speed: 3.2 GHz
Number of Cores: 12-core Processor
Processor Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Xeon Virtualization Technology
Processor Number: 4214
Server Scalability: 2-way
Type: Xeon Silver
Bay Provided
Form Factor: 3.5″ LFF
Free Quantity: 8
Total Quantity: 8
Cache Memory
Installed Size: 16.5 MB
Display: None
Header
Brand: Lenovo
Manufacturer: Lenovo System X
Model: 7X99
Packaged Quantity: 1
Product Line: Lenovo ThinkSystem SR590
Interface Provided
Connector Type: RJ-45
Type: Management
Location: 1 front, 2 rear
Quantity: 3
Type: USB 3.0
Location: 1 in front
Quantity: 1
Type: USB 2.0
Quantity: 2
Type: LAN (Gigabit Ethernet)
Type: VGA
Mainboard
Chipset Type: Intel C622
Miscellaneous
Color Category: Black
Compliant Standards: Multiple international standards
Height (Rack Units): 2
Included Accessories: Tool-less rail kit
Networking
Data Link Protocol: Gigabit Ethernet Servers
Ethernet Ports: 2 x Gigabit Ethernet
Remote Management Controller: XClarity Controller (XCC) Enterprise
OS Provided
Type: No operating system
Power Device
80 PLUS Certification: 80 PLUS Platinum
Frequency Required: 50/60 Hz
Installed Quantity: 1
Max Supported Quantity: 2
Nominal Voltage: AC 120/230 V
Power Provided: 750 Watt
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
Type: Power supply – hot-plug
RAM
Configuration Features: 1 x 16GB RAM
Data Integrity Check: ECC Registered
Empty Slots: 15
Features: Demand Scrubbing, Dual rank, Memory Mirroring, Memory Sparing, Patrol Scrubbing, Registered, Supports Intel Optane DC Persistent Memory (DCPMM)
Form Factor: DIMM 288-pin
Installed Size: 16 GB
Max Supported Size: 512 GB
Memory Speed: 2400 MHz
Rated Memory Speed: 2666 MHz
Slots Quantity: 16
Technology: DDR4 SDRAM
