7Y03A00QNA Technical Specifications

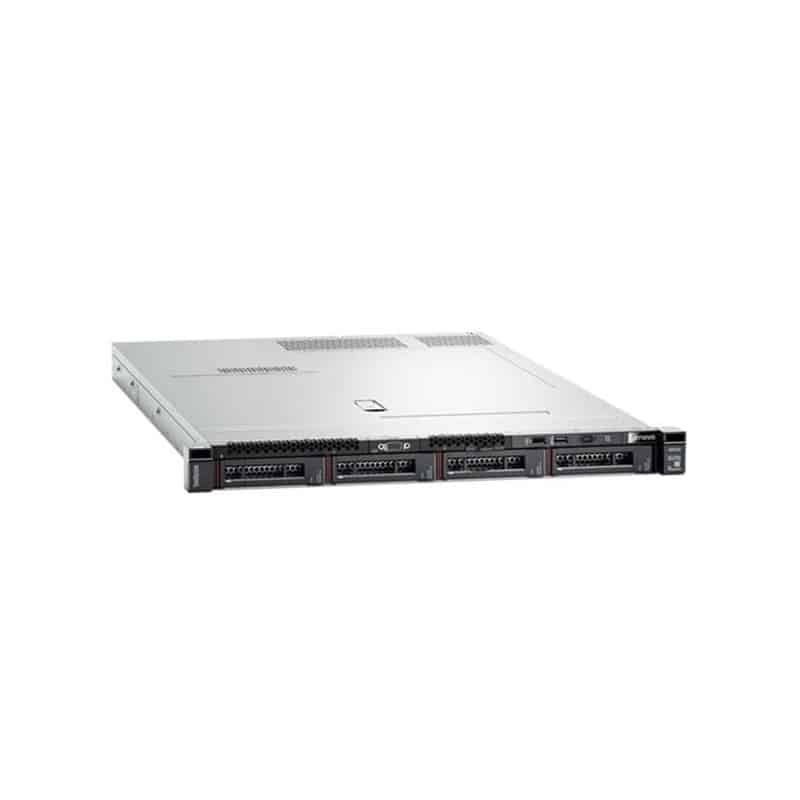

Lenovo ThinkSystem SR570 Server with Intel Xeon
General Information
Product Name: ThinkSystem SR570 Server with Intel Xeon Gold 5120, 14C, 2.2GHz, 16GB, 750W
Product Line: ThinkSystem
Product Series: SR570
Product Model: 7Y03A00QNA
Product Type: Server
Controllers
Controller Types: 12Gb/s SAS, Serial ATA/600
RAID Support: Yes, with levels 0, 1, 5, 6, 10, 50, 60
Display & Graphics
Graphics Controller: Matrox G200 with up to 16MB memory
I/O Expansions
Total Expansion Bays: 8, with 8 internal 2.5″ bays; Hot Swappable Bays included
Memory
Standard Memory: 16GB, utilizing TruDDR4 technology
Total Memory Slots: 16, with 1 occupied
Network & Communication
Ethernet Technology: Gigabit Ethernet
Power Description
Input Voltage: 120V AC, 230V AC
Power Supplies: 2 supported, 1 installed, with a maximum wattage of 750W
Processor & Chipset
Supported Processors: 2, with 1 installed
Processor Manufacturer: Intel
Type: Xeon Gold 5120, 14-core, 2.20GHz
Physical Characteristics
Form Factor: Rack, with a height of 1U, dimensions of 1.7″ x 17.1″ x 28.1″.
