7Y03A069NA Technical Specifications

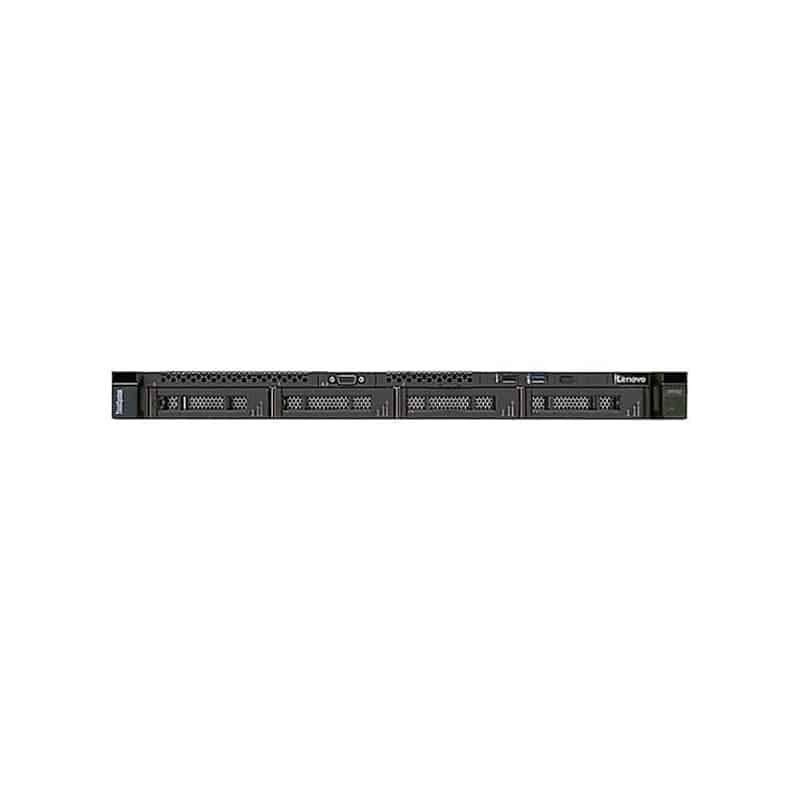

Lenovo ThinkSystem SR570 – Rack-Mountable Server
Processor
Clock Speed: 2.1 GHz
Installed Quantity: 1
Manufacturer: Intel Xeon
Max Supported Quantity: 2
Max Turbo Speed: 3.9 GHz
Number of Cores: 20
Main Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Virtualization Technology
Processor Number: 6230
Scalability: 2-way
Type: Xeon Gold
Audio Input
Type: None
Bay Provided
Form Factor: 3.5″ LFF
Free Quantity: 4
Total Quantity: 4
Cache Memory
Installed Size: 27.5 MB
Header
Brand: Lenovo
Manufacturer: Lenovo System X
Model: 7Y03
Packaged Quantity: 1
Product Line: Lenovo ThinkSystem SR570
Interface Provided
Connector Type: RJ-45, USB 3.0, USB 2.0, LAN (Gigabit Ethernet), VGA
Mainboard
Chipset Type: Intel C622
Miscellaneous
Color: Black
Compliant Standards: Various international standards
Height (Rack Units): 1
Included Accessories: Tool-less rail kit
Networking
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Ports: 2 x Gigabit Ethernet
Remote Management: XClarity Controller (XCC) Enterprise
OS Provided
Type: No operating system
Power Device
Certification: 80 PLUS Platinum
Frequency: 50/60 Hz
Installed Quantity: 1
Max Supported Quantity: 2
Nominal Voltage: AC 120/230 V
Power Provided: 750 Watt
Redundancy: Optional
Power Supply Type: Hot plug
RAM
Configuration: 1 x 32 GB
Data Integrity: ECC Registered
Empty Slots: 15
Max Supported Size: 512 GB
Memory Speed: 2666 MHz
Technology: DDR4 SDRAM
