7Y03A06ANA Technical Specifications

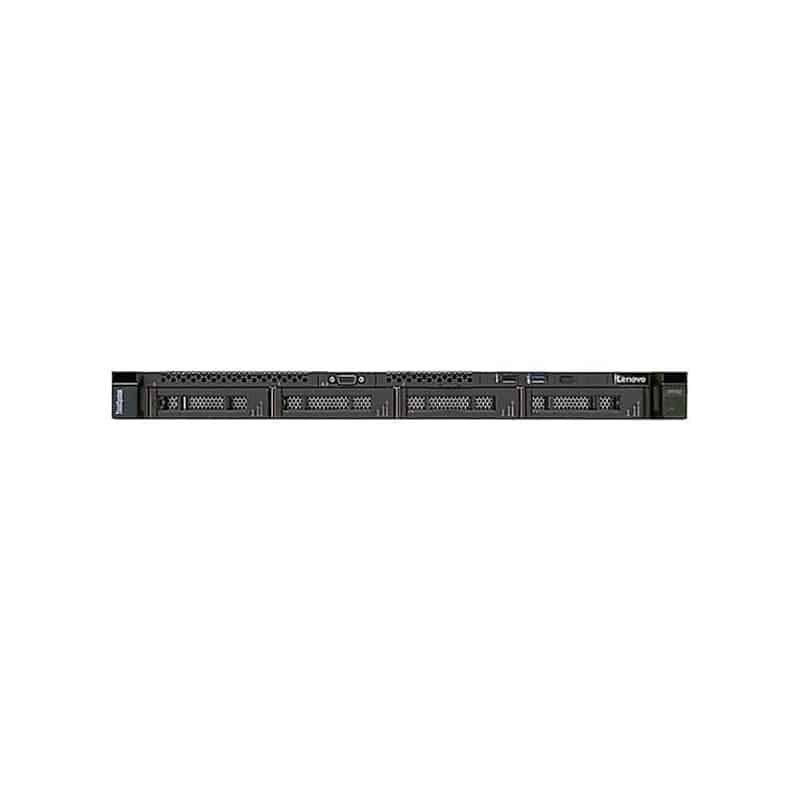

Lenovo ThinkSystem SR570 – rack-mountable
Processor
Clock Speed: 2.8 GHz
Installed Quantity: 1
Manufacturer: Intel Xeon
Maximum Supported Quantity: 2
Max Turbo Speed: 3.9 GHz
Cores: 16-core Processor
Main Features: Hyper-Threading Technology, Intel Xeon Turbo Boost Technology 2, Intel Virtualization Technology
Processor Number: 6242
Scalability: 2-way
Type: Xeon Gold
Audio Input
Type: None
Bay Provided
Form Factor: 3.5″ LFF
Free Quantity: 4
Total Quantity: 4
Cache Memory
Installed Size: 22 MB
Header
Manufacturer: Lenovo System X
Model: 7Y03
Packaged Quantity: 1
Product Line: Lenovo ThinkSystem SR570
Interface Provided
Connector Type: RJ-45
Type: Management
Location: 1 front, 2 rear
Quantity: 3
USB 3.0: 1 in front
USB 2.0: 2
VGA: Type
Mainboard
Chipset Type: Intel C622
Miscellaneous
Color: Black
Compliant Standards: AS/NZS CISPR 22, BSMI CNS 13438 Class A, and more.
Height (Rack Units): 1
Included Accessories: Tool-less rail kit
Networking
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet Servers
Ethernet Ports: 2 x Gigabit Ethernet
Remote Management: XClarity Controller (XCC) Enterprise
OS Provided
Type: No operating system
Power Device
80 PLUS Certification: 80 PLUS Platinum
Frequency: 50/60 Hz
Installed Quantity: 1
Max Supported Quantity: 2
Nominal Voltage: AC 120/230 V
Power Provided: 750 Watt
Power Redundancy: Optional
Type: Hot plug power supply
Printer
Type: None
RAM
Configuration: 1 x 32 GB
Data Integrity Check: ECC Registered
Empty Slots: 15
Features: Demand Scrubbing, Memory Mirroring, and more.
Form Factor: DIMM 288-pin
Installed Size: 32 GB
Max Supported Size: 512 GB
Memory Speed: 2666 MHz
Slots Quantity: 16
Technology: DDR4 SDRAM.
