7Y46A002NA Technical Specifications

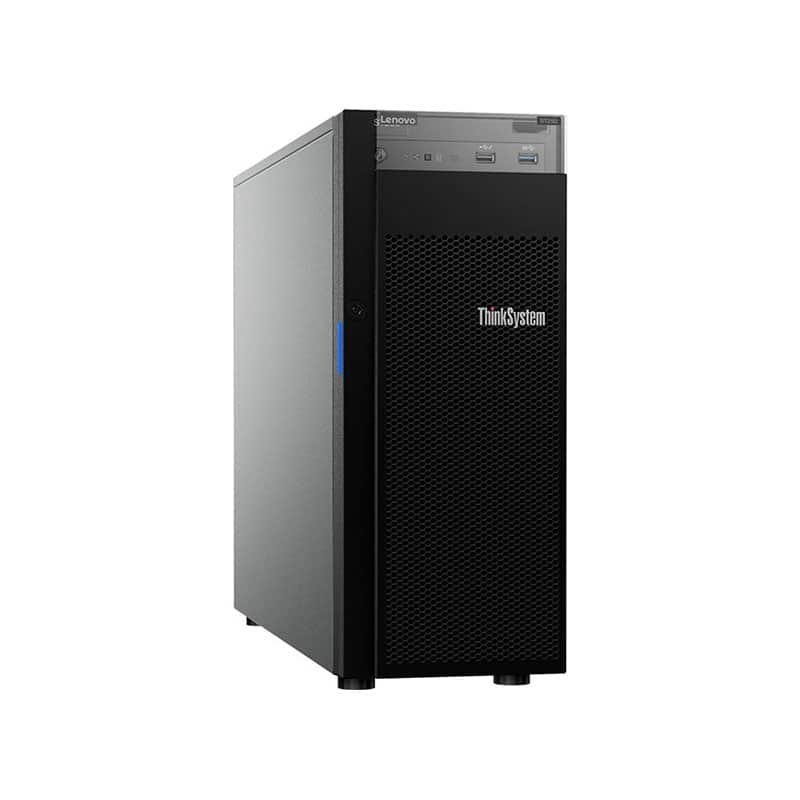

Lenovo ThinkSystem ST250 – Tower
Bay Provided
Form Factor: 2.5″
Free Qty: 8
Total Qty: 8
Form Factor: 5.25″ x 1/2H
Free Qty: 1
Total Qty: 2
Cabinet
Chassis Built-in Devices: LED panel
Header
Brand: Lenovo
Manufacturer: Lenovo System X
Model: 7Y46
Packaged Quantity: 1
Product Line: Lenovo ThinkSystem ST250
Input Device
Type: No keyboard, No mouse
Interface Provided
Connector Type: RJ-45
Type: LAN (Gigabit Ethernet)
Location: 1 front, 2 rear
Qty: 3
Type: USB 3.1 Gen 1
Location: 1 in front
Qty: 1
Type: USB 2.0
Location: 1 internal
Type: USB 3.0
Qty: 2
Type: USB 3.1 Gen 2
Type: Management
Type: Serial
Type: VGA
Mainboard
Chipset Type: Intel C246
Miscellaneous
Color Category: Black
Compliant Standards: AS/NZS CISPR 32 Class A, ASHRAE Class A2, BIS, BSMI, CB, CCC, CECP, CNS 13438 Class A, CNS 14336-1, EK1-ITB2000, EN 55032 Class A, EN 60950-1, EN 62368-1, EN55024, EN61000-3-2, EN61000-3-3, FCC CFR47 Part 15 B, GB 17625.1, GB 9254 Class A, GB4943.1, ICES-003 issue 6 Class A, IEC 60950-1, IEC 62368-1, IEC60950-1, KN32 Class A, KN35, NOM-019, TR CU 004/2011, TR CU 020/2011, TUV GS, UL 62368-1
Height (Rack Units): 4U
Security Slot Type: Kensington security slot
Theft/Intrusion Protection: Padlock loop, Security lock slot (cable lock sold separately)
Networking
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller(s): Broadcom BCM5720
Ethernet Ports: 2 x Gigabit Ethernet
Features: PXE support, Teaming support
Remote Management Controller: XClarity Controller (XCC) Enterprise
Optical Storage (2nd)
Drive Type: No optical drive
Type: None
OS Provided
Type: No operating system
Power Device
80 PLUS Certification: 80 PLUS Platinum
Frequency Required: 50/60 Hz
Installed Qty: 1
Max Supported Qty: 2
Nominal Voltage: AC 120/230 V
Power Provided: 550 Watt
Type: Power supply – hot-plug
Printer
Type: None
Processor
Clock Speed: 3.8 GHz
Installed Qty: 1
Manufacturer: Intel
Max Supported Qty: 1
Max Turbo Speed: 4.7 GHz
Number of Cores: Quad-Core
Processor Number: E-2174G
Server Scalability: 1-way
Type: Xeon
