7Y99A017NA Technical Specifications

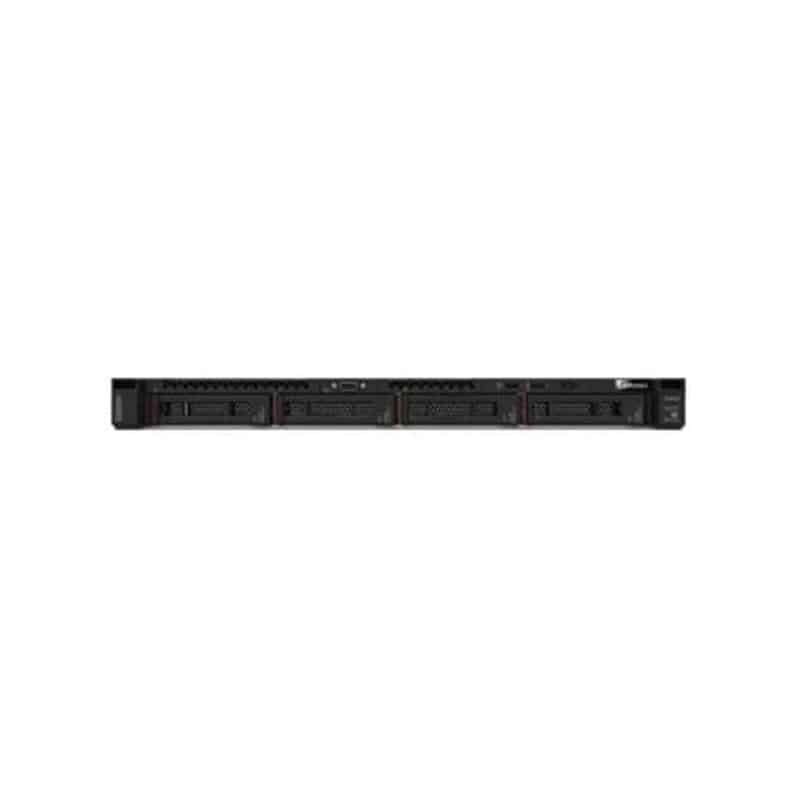

Lenovo ThinkSystem SR635 – Rack-Mountable Server
Audio Output Details
Speaker Type: None
Chassis
Form Factor: Rack-mountable
Manufacturer Form Factor: Rack-mountable
Display
Type: None.
Environmental Standards
ENERGY STAR Certified: Yes
ENERGY STAR Version: 3.0
Expansion Slots
Size: Half-length, full-height
Type: PCIe 4.0 x16
Size: Low-profile
Slot Comments: For internal storage controller
Type: PCIe 4.0 x8
Type: PCIe 4.0 x16 / Open Compute Project mezzanine (OCP) 3.0
Hard Drive
Type: No HDD
Hard Drive (2nd): None
Hard Drive (3rd): None
Hard Drive (4th): None
Optical Storage
Drive Type: No optical drive
Type: None
Video Memory
Installed Size: 512 MB
Header
Brand: Lenovo
Manufacturer: Lenovo System X
Model: 7Y99
Packaged Quantity: 1
Product Line: Lenovo ThinkSystem SR635
Interface Provided
Connector Type: DB-9, Qty: 1, Type: Serial
Connector Type: RJ-45, Type: Management, Location: 1 front, 1 rear, Qty: 2
Connector Type: VGA, Location: 2 front, 1 rear, Qty: 3
Connector Type: USB 3.1 Gen 1
Miscellaneous
Color Category: Black
Compliant Standards: AS/NZS 60950-1, AS/NZS CISPR 32 Class A, and more
Height (Rack Units): 1
Included Accessories: Slide tool-less rail kit
OS Provided
Type: No operating system
Power Device
80 PLUS Certification: 80 PLUS Platinum
Frequency Required: 50/60 Hz
Installed Qty: 1
Max Supported Qty: 2
Nominal Voltage: AC 120/230 V
Power Provided: 1100 Watt
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
Type: Power supply – hot-plug
