800077-S01 Technical Specifications

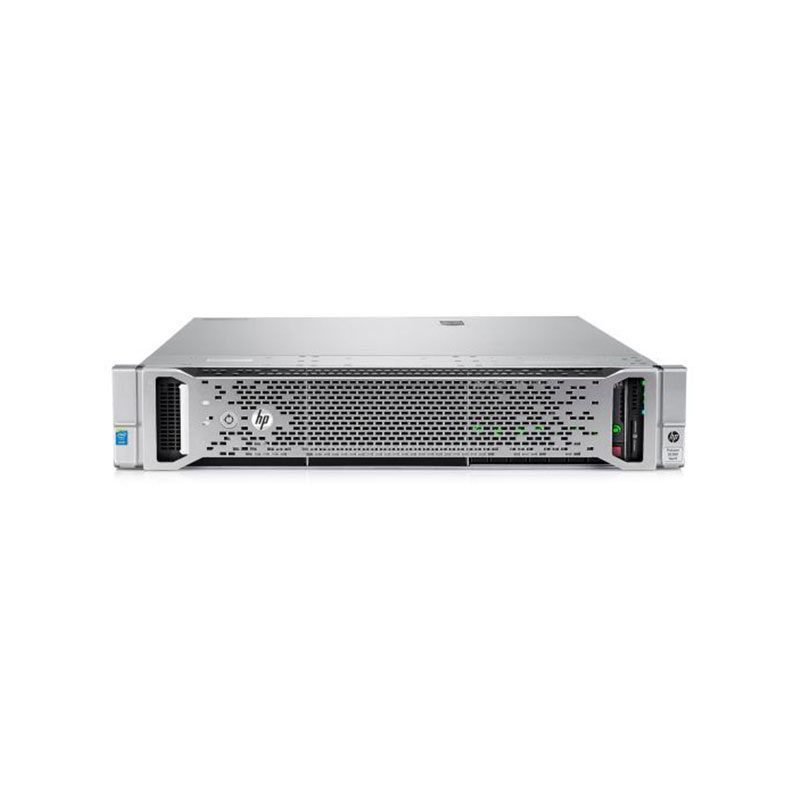

HP Proliant DL380 Gen9 – 2U Rack Mount Server (S-Buy)
GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 800077-S01
Product Name: Proliant DL380 Gen9 – 2U Rack Mount Server (S-Buy)
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5-2690v3 at 2.6GHz
Max Turbo Speed: 3.5 GHz
Quickpath Interconnect: 9.60 GT/s
Number Of Cores: 12
64-Bit Computing: Yes
Compatible Processor Socket: FCLGA2011-3
Installed Qty: 2
Max Supported Qty: 2
Chipset Type: Intel C610 Series
CACHE MEMORY:
Cache Memory Type: Smart Cache
Installed Size: 60MB
Cache Per Processor: 30MB
MEMORY:
Installed Size: 64GB (4x16GB) Dual Rank X4 / 384 GB (Max)
Technology: DDR4 SDRAM PC4-17000R (DDR4-2133)
Form Factor: DIMM 288-Pin
Total Memory Slots: 24 DDR4 Slots
STORAGE & STORAGE CONTROLLER:
Hard Drive: None
Optical Drive Type: None
STORAGE CONTROLLERS:
Storage Controller Name: Smart Array P440ar
Buffer Size: 2 GB
Disk Drive: 12GB/s SAS / 6GB/s SATA
SAS Port Link Rate: 12GB/s per Physical Link Supported
PCIe Link Rate: PCI Express 3.0 x8
Physical Drives: Up To 26 Drives
Logical Drives Supported: Up To 64 Logical Drives
RAID Support: RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
DISPLAY & GRAPHICS CONTROLLERS:
Graphics Controller Type: Integrated Matrox G200eh2
Video Memory: 16 MB
NETWORK & COMMUNICATION:
Ethernet Ports: 4 X Gigabit Ethernet
Ethernet Controller: HP 331i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 4
Features: Wake On LAN (WOL), PXE Support
Compliant Standards: IEEE 802.3, 802.3u, 802.3ab
POWER DESCRIPTION:
Device Type: Flex Slot Platinum Plus Hot-Plug Power Supply
Installed Qty: 2
Max Supported Qty: 2
Nominal Voltage: AC 100-240V (50/60 Hz)
Power Provided: 800 Watts.
