Technical Specifications for 800078-S01

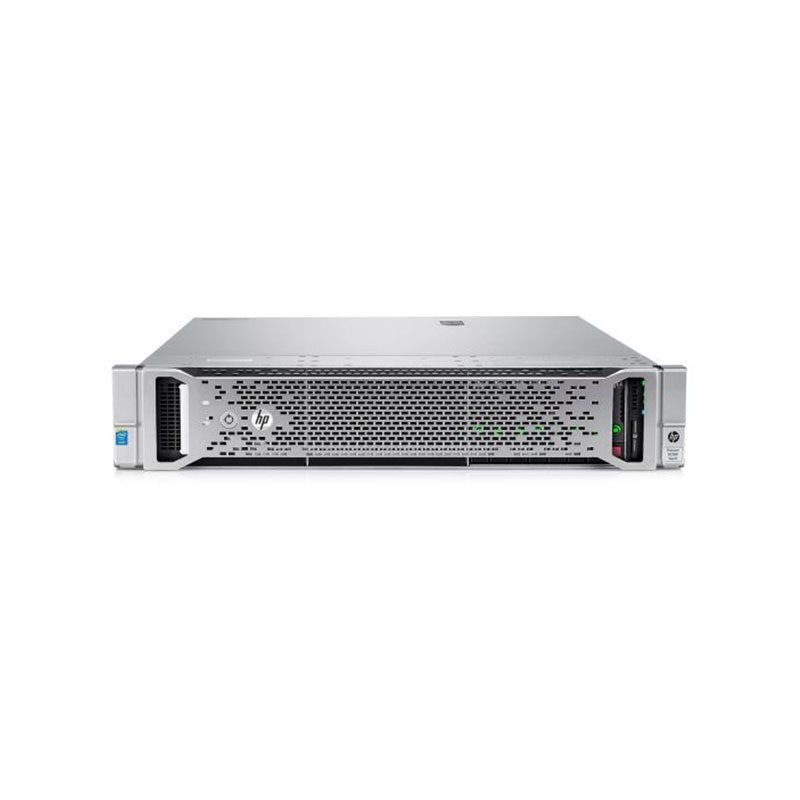

HP Proliant DL380 Gen9 with Dual Intel Xeon E5-2697v3
GENERAL INFORMATION :
Manufacturer: Hewlett Packard
Part Number: 800078-S01
Product Name: Proliant DL380 Gen9 – 2U Rack Mount Server (S-Buy)
PROCESSOR & CHIPSET :
Type: Intel Xeon E5-2697v3 at 2.6GHz
Max Turbo Speed: 3.6GHz
QuickPath Interconnect: 9.60 GT/s
Cores: 14
64-Bit Computing: Yes
Socket Type: FCLGA2011
Installed Qty: 2
Max Supported Qty: 2
Chipset: Intel C610 Series
CACHE MEMORY :
Type: Smart Cache
Installed Size: 70MB
Per Processor: 35MB
MEMORY :
Size: 64GB (4x16GB) Dual Rank X4, Max: 384GB
Technology: DDR4 SDRAM PC4-17000R (DDR4-2133)
Form Factor: DIMM 288-Pin
Slots: 24 DDR4
STORAGE :
Drive: None
Optical: None
STORAGE CONTROLLER :
Name: Smart Array P440ar
Buffer: 2GB
Drive Type: 12Gb/s SAS / 6Gb/s SATA
Link Rate: 12Gb/s per physical link
PCIe Link Rate: PCI Express 3.0 x8
Drives Supported: Up to 26
Logical Drives: Up to 64
RAID Support: Various RAID configurations
GRAPHICS :
Type: Integrated Matrox G200eh2
Video Memory: 16MB
NETWORK :
Ports: 2 x 10 Gigabit Ethernet, 4 x Gigabit Ethernet
Controller: HP 331i, HP 556flr-SFP+
Protocols: Ethernet, Fast Ethernet, Gigabit, 10 Gigabit
Management: Integrated Lights-Out 4
Features: Wake On LAN, PXE Support
Standards: IEEE 802.3, 802.3u, 802.3ab
POWER :
Type: Flex Slot Platinum Plus Hot-Plug Power Supply
Installed Qty: 2
