8038C4U Technical Specification

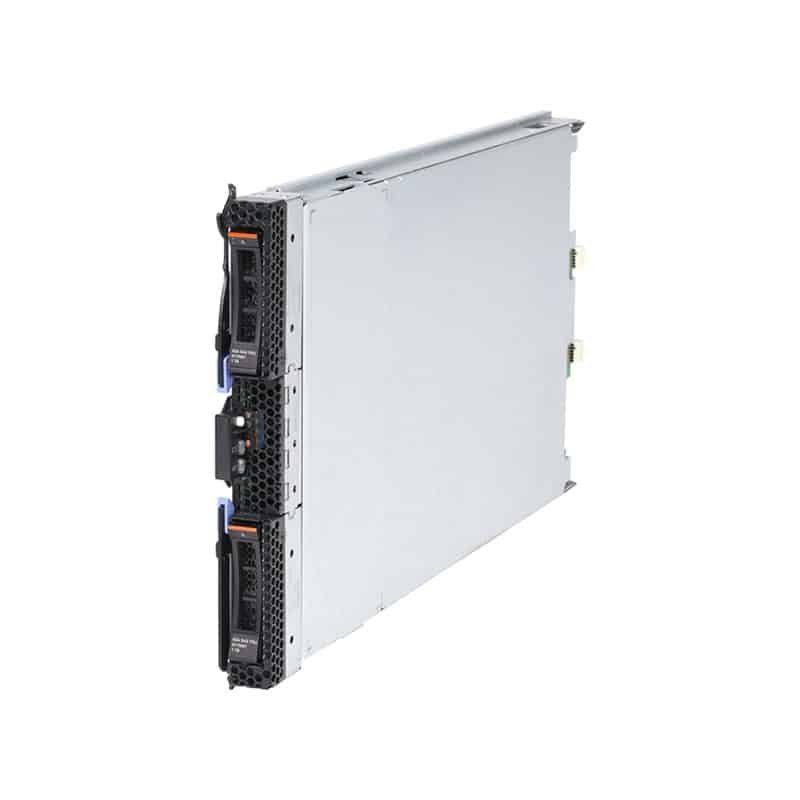

IBM Server HS23E with Intel Xeon 2.2GHz
Supported chassis include BladeCenter H, BladeCenter HT, BladeCenter S, and BladeCenter E (note that some configurations may have restrictions).
For systems management, this server utilizes UEFI and is powered by the Renesas SH7757 controller-based IBM Integrated Management Module II (IMM2), featuring remote presence capabilities (graphics, keyboard, mouse, and virtual media). It also supports predictive failure analysis, light path diagnostics, automatic server restart, IBM Systems Director, IBM Systems Director Active Energy Manager, IBM ServerGuide, and IBM FastSetup.
In terms of security, it offers a power-on password, an administrator’s password, and a Trusted Platform Module 1.2. The package includes the server blade and documentation.
General specifications include a Blade Server chassis form factor, a sleek black color, and a weight of 10.1 lbs. Memory specifications feature a cache memory of 15 MB, with 24 GB of installed RAM, expandable to a maximum of 192 GB using DDR3 SDRAM technology. Note that the installed RAM consists of 24GB (3x8GB) 1333MHz ECC DDR3 SDRAM, with an expansion capacity up to 192GB.
