839694-P01 Technical Specifications

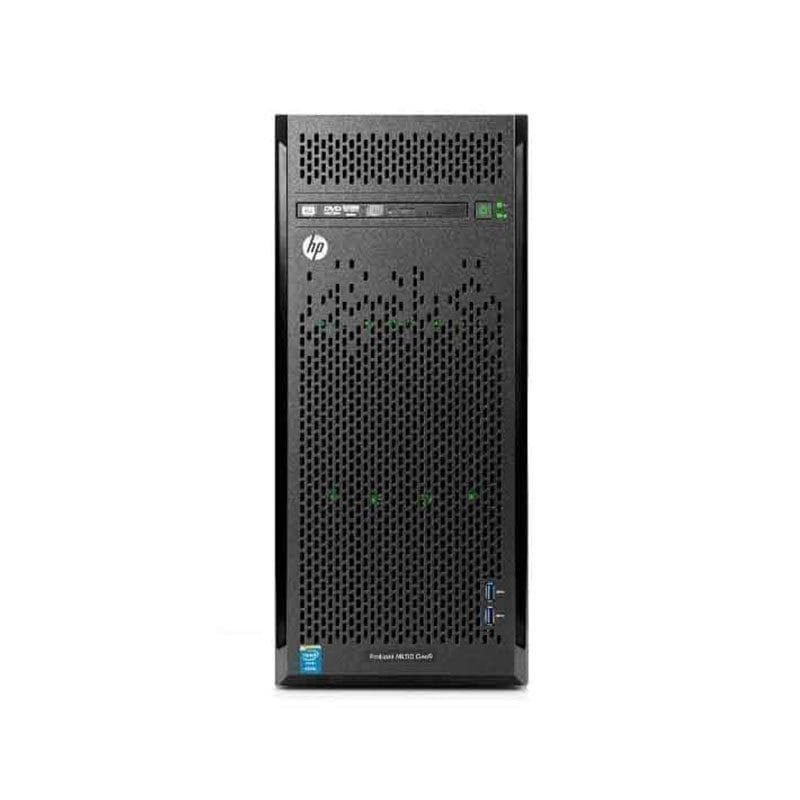

HP Proliant ML110 GEN9 E3-2620V3 Non-Hot Plug Server
This server supports DDR4 Registered (RDIMM) or Load Reduced (LRDIMM) memory with a total of 8 DIMM slots. Each processor can handle 8 DDR4 slots across 4 channels, accommodating up to 128GB using LRDIMMs (8 x 16GB @ 2133MHz) or up to 256GB with RDIMMs (8 x 32GB @ 2133MHz). Note that mixing LRDIMMs and RDIMMs is not supported, as it may cause the server to halt during BIOS installation.
Memory protection features include Advanced ECC, which detects and corrects single and multibit errors within a single DRAM chip, and online spare memory that switches to a spare rank if a degrading rank is detected.
The server is equipped with a Broadcom 5717C0 Dual-port 1Gb network controller and provides multiple expansion slots: five PCIe 3.0 slots, including one x16, two x8, and two x4 slots, all full-height and half-length.
For storage, it supports optional SATA 9.5mm DVD-ROM or DVD RW optical drives, with specific configurations depending on the model.
