861540-S01 Technical Specifications
HP Proliant DL360 GEN9 Smart Buy with Intel Xeon E5-2697V4
GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 861540-S01

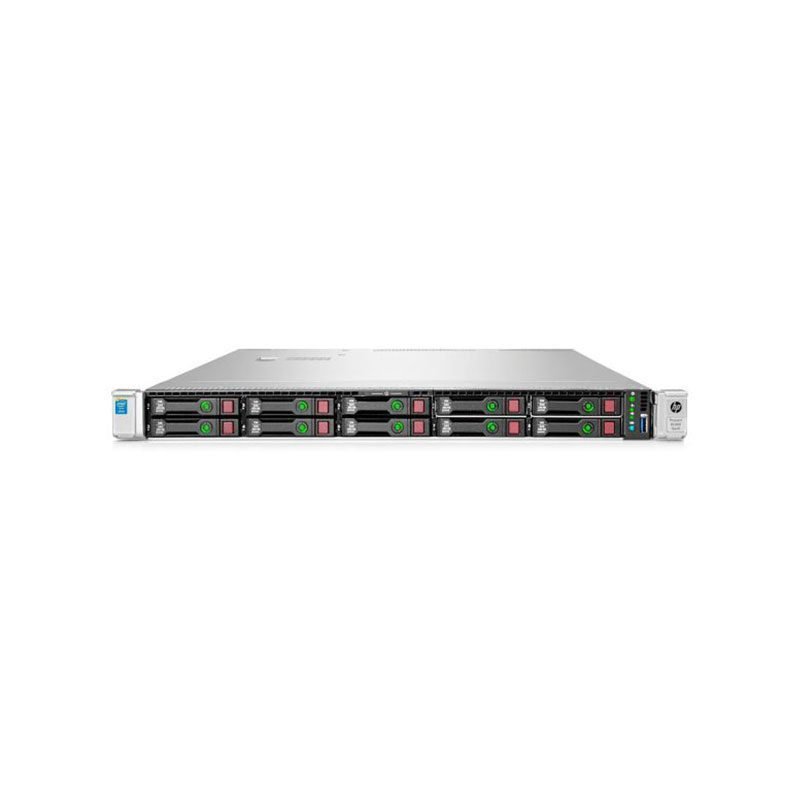

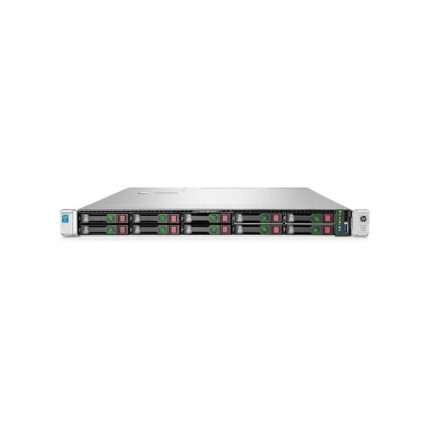

Product Name: HP Proliant DL360 Gen9 – 1U Rack Mountable Server (Smart Buy)
PROCESSOR & CHIPSET:
CPU: Intel Xeon E5-2697v4 at 2.3 GHz
Max Turbo Speed: 3.6 GHz
Cores: 18 Core
CPU Quantity: 1 (upgradable to 2)
Main Features: Hyper-Threading and Intel Turbo Boost Technology 2
CACHE MEMORY:
Installed Size: 45 MB
Cache per Processor: 45 MB
MEMORY:
Installed Size: 32 GB (up to 384 GB max)
Type: DDR4 SDRAM – Advanced ECC
Form Factor: DIMM 288-Pin
Slots: 24 x DDR4 RAM Slots
Configuration: 2 x 16 GB
STORAGE:
Hard Drive: None
Optical Drive: None
STORAGE CONTROLLERS:
RAID Type: 1 x RAID – PCIe 3.0 x8
Controller: Smart Array P440AR with 2GB FBWC
RAID Levels: 0, 1, 5, 6, 10, 50, 60
NETWORK & COMMUNICATION:
Ethernet Ports: 4x Gigabit Ethernet
Controller: HP 331i
Remote Management: Integrated Lights-Out 4
POWER DESCRIPTION:
Power Supply: 2 x 550W Hot Plug, 80 Plus Platinum certified.
