874462-S01 Technical Specification

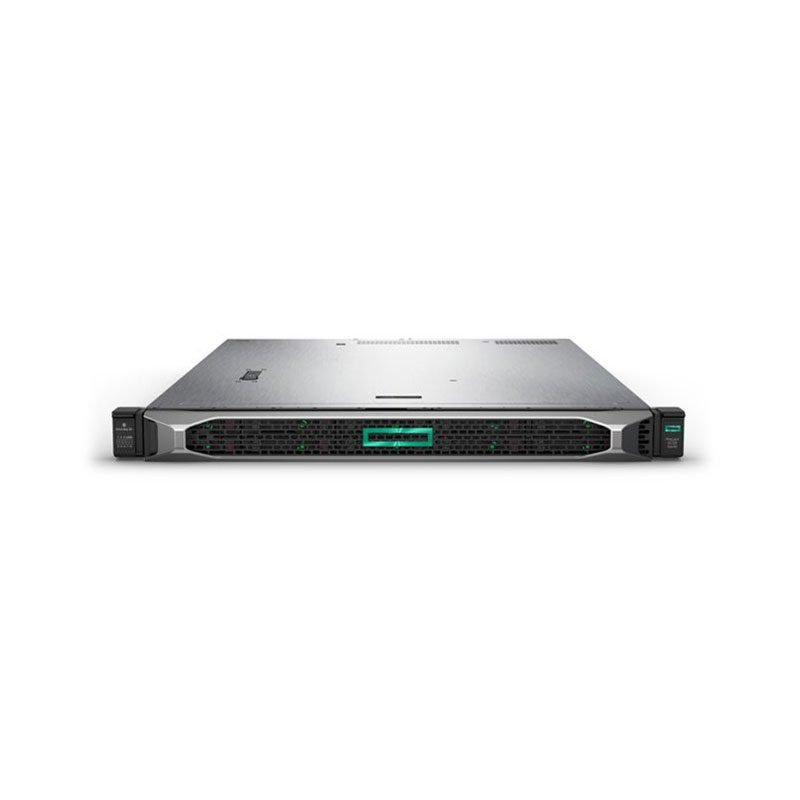

HP Proliant DL360 Gen10 6132 Server Overview
GENERAL INFORMATION:
- Type: Server
- Model: HPE Proliant DL360 Gen10
- Form Factor: Rack-mountable 1U
- Built-in Devices: Battery
- Scalability: 2-way
- Graphics: Integrated with 16 MB Video Memory, VGA interface
- Hard Drive: No HDD included
NETWORKING:
- Ethernet Ports: 4 x Gigabit Ethernet
- Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management: SNMP 3, IPMI 2.0, SMASH CLP
- Controller: Integrated Lights-Out 5
- Features: Wake on LAN (WoL), PXE support
POWER:
- Type: Hot plug power supply
- Installed Qty: 2
- Max Supported Qty: 2
- Voltage: AC 120/230 V (50/60 Hz)
- Power: 800 Watt
PROCESSOR / CHIPSET:
- CPU: Intel Xeon Gold 6132 / 2.6 GHz
- Turbo Speed: 3.7 GHz
- Cores: 14
- Max CPU Qty: 2
- Socket: Socket P
- Chipset: Intel C621
RAM:
- Installed Size: 32 GB, Max: 384 GB
- Type: DDR4 SDRAM – Advanced ECC
- Memory Speed: 2666 MHz
- Slots: 12 (total), 10 (empty)
- Configuration: 2 x 16 GB
STORAGE CONTROLLER:
- Type: 1 x RAID
- Interface: SATA 6Gb/s / SAS 12Gb/s
- Controller: HPE Smart Array P408i-a
- Channel Qty: 8
- RAID Levels Supported: Various including RAID 0, 1, 5, 10, etc.
