9532EIU Technical Specification

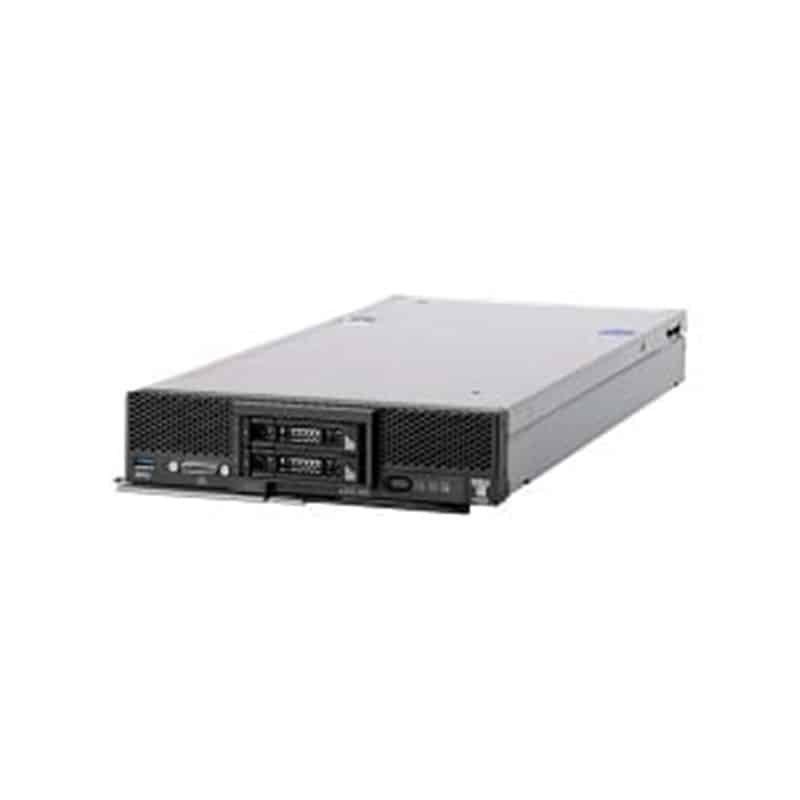

Lenovo Flex System x240 M5 Server
Equipped with 32GB (2x16GB) ECC Registered (RDIMM) DDR4 memory running at 2400MHz, the system can be expanded to a maximum of 1.5TB. It supports up to 24 slots, with 12 DIMMs allocated per processor, and is compatible with both RDIMMs and LRDIMMs, though they cannot be mixed. Each processor has four memory channels, accommodating three DIMMs per channel. Note that due to processor limitations, memory operates at 2133MHz. Maximum memory configurations include 1.5TB with LRDIMMs (24x64GB) and 768GB with RDIMMs (24x32GB). The integrated Matrox G200eR2 video core includes 16MB of video memory. This server supports two processors, with the Intel C612 chipset and a data bus speed of 2400 MHz. Featuring an 8-core Intel Xeon E5-2620V4 processor with a speed of 2.1 GHz, it is fully upgradable. The storage options include hot-swappable drives, with a RAID controller supporting RAID 0, RAID 1, and RAID 1E configurations. The external video resolution reaches up to 1600 x 1200, utilizing a PCI Express 3.0 x16 video slot.
