AIR-AP2802I-G-K9 Technical Specifications

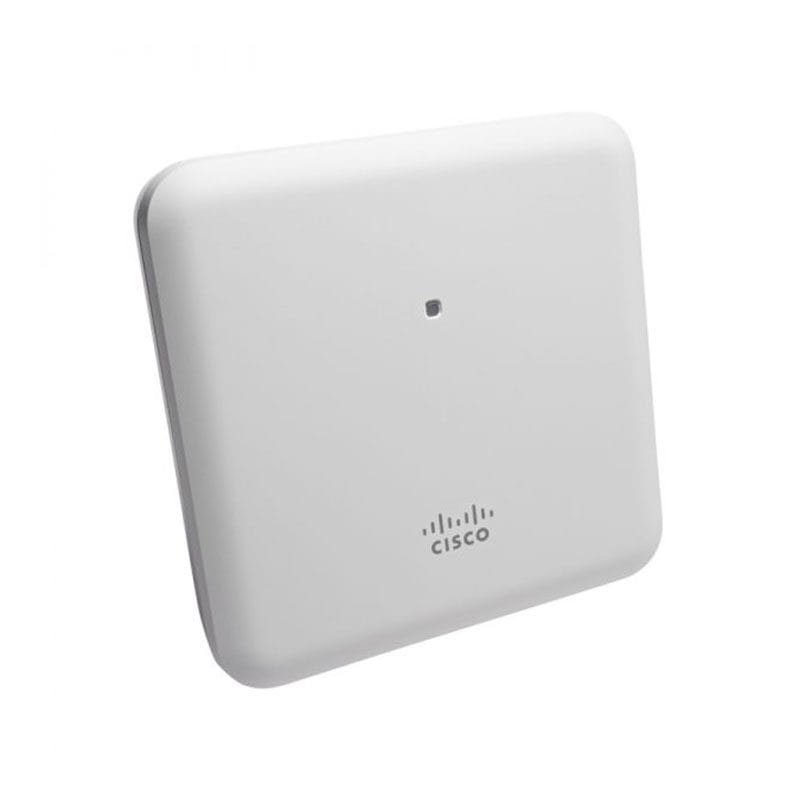

Cisco Aironet 2802i Access Point
Compatible with Cisco Unified Wireless Network Software Release 8.2.111.0 or later, and Cisco IOS® XE Software Release 16.3, this access point supports various wireless LAN controllers, including Cisco 2500 Series and Cisco 5500 Series.
**802.11n Capabilities:**
– 4×4 MIMO with three spatial streams
– Maximum ratio combining (MRC)
– Beamforming for 802.11n and 802.11a/g
– Data rates up to 450 Mbps (40 MHz in 5 GHz)
**802.11ac Wave 1 Features:**
– 4×4 MIMO with three spatial streams
– Data rates up to 1.3 Gbps (80 MHz in 5 GHz)
**802.11ac Wave 2 Features:**
– 4×4 MU-MIMO with three spatial streams
– Data rates up to 5.2 Gbps
**Antenna Specifications:**
– Internal antennas with 2.4 GHz gain of 4 dBi and 5 GHz gain of 6 dBi
– Optional external antennas available (sold separately)
**Interfaces:**
– 2×100/1000BASE-T autosensing ports (RJ-45)
– USB 2.0 port (future enabled)
**Power Requirements:**
– 802.3at PoE+ and Cisco Universal PoE
**Environmental Specifications:**
– Operating temperature range: 32° to 104°F (0° to 40°C)
This access point is engineered for optimal performance in demanding environments.
