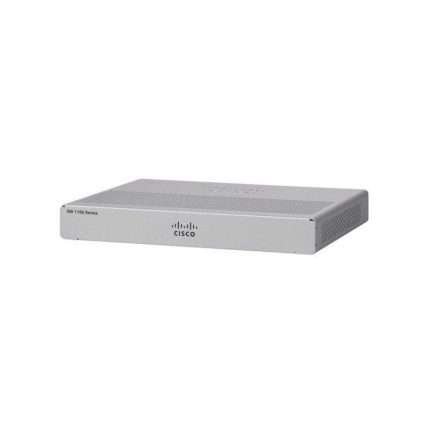

C1111-4PWD Technical Specifications
Cisco 1100 Series Integrated Services Router
Description
The ISR 1100 model features four ports with Dual GE WAN and 802.11ac -D WiFi technology.
Physical Properties
Dimensions (H x W x D): Non-LTE models measure H x W x D = 1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) including rubber feet. The weight with AC power supply (without modules) is a maximum of 5.5 lbs. (2.5 kg).
AC Input Power
Input voltage: Universal 100 to 240 VAC, Frequency: 50-60 Hz. Input current: Maximum of 0.82A when PoE is not enabled and 1.55A when PoE is enabled. Surge current peaks at 90 A with less than 8 Arms per half cycle.
Ports
Includes a Micro USB Port and one RJ-45 console port. The USB 3.0 Type A host port supports USB flash memory devices. The console management connectivity is provided via a USB 5-pin micro Type B port. The device features two GE ports, which can be configured among RJ45 and SFP. Wireless VLANs support up to 32 (both encrypted and non-encrypted). The wireless specs include 2×2 .11ac Wave 2, with 4GB default and maximum DRAM and flash. PoE capabilities include 4 ports for -8P PIDs and 2 ports for -4P PIDs, compliant with 802.3af and 802.3at standards. The Cisco 1100 Series ISRs are designed with a fanless architecture, ensuring silent operation.
