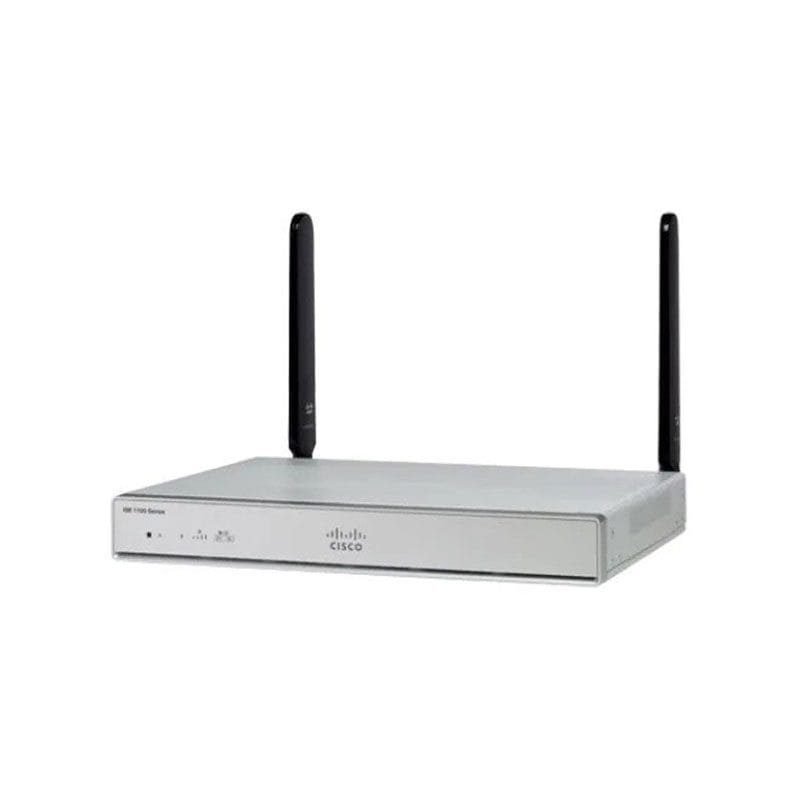

C1113-8PLTEEAWA Technical Specifications
Cisco 1100 Series Integrated Services Router
The Cisco 1100 Series ISR includes a GE/SFP combo port and supports ADSL2/VDSL2+ with G.FAST technology. It features LTE Advanced (CAT6) for both EMEAR and North America. The device incorporates 802.11ac technology with 2X2 MIMO capabilities, providing 8 GE ports, 4 PoE, and 2 PoE+ ports.
Memory
The router is equipped with 4 GB DRAM and 4 GB Flash memory.
Console
It offers a Micro USB console (USB 3.0) and a reserved Mini-USB port for remote LTE diagnostics and monitoring tools.
802.11ac Features
This model supports 2×2 SU-MIMO/MU-MIMO with two spatial streams, achieving PHY data rates up to 866.7 Mbps. It also supports various channel widths and advanced features like Dynamic Frequency Selection (DFS).
Power Supply
The universal AC input voltage ranges from 100 to 240 VAC with a maximum output power of 66W. Optional PoE configurations are available.
Physical Dimensions
Dimensions vary slightly across models, with the C111X measuring approximately 1.75 x 12.7 x 9.6 in.
Environmental Conditions
Operating temperature ranges from 32° to 104°F, with a nonoperating range of -4° to 149°F.
