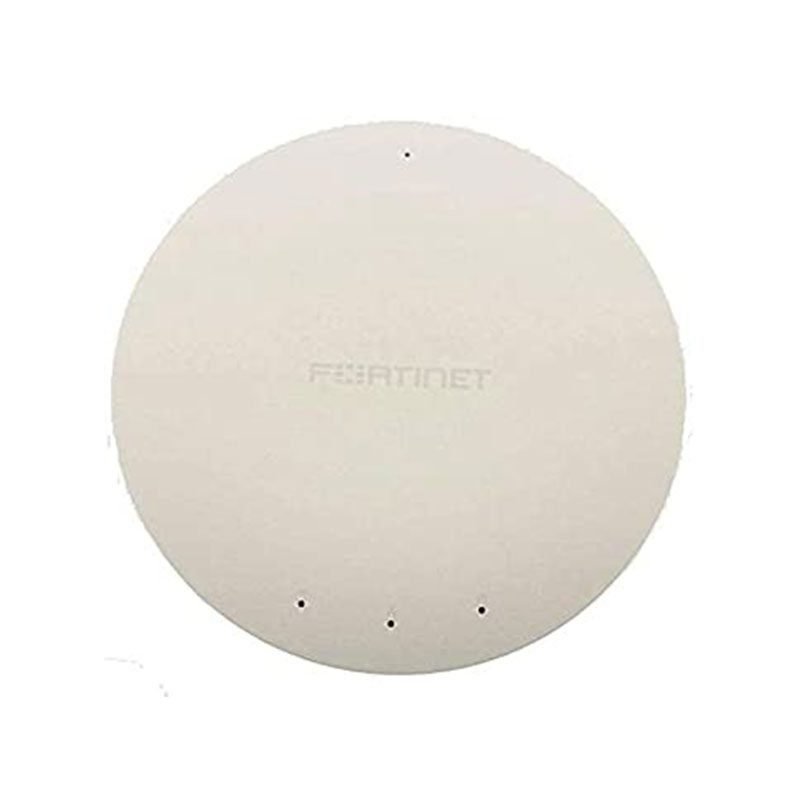

FAP-221B-A Technical Specifications
Fortinet Fortiap 221b 300 Mbps Wireless Access Point
GENERAL INFORMATION:
Manufacturer: Fortinet, Inc.
Brand: Fortinet
Product Line: Fortiap
Model: 221b
Product Name: Fortiap 221b Wireless Access Point
Product Type: Wireless Access Point
TECHNICAL INFORMATION:
This device supports the IEEE 802.11n wireless LAN standard and operates on both ISM and UNII bands. The ISM frequency range spans from 2.40 GHz to 2.48 GHz, while the UNII band ranges from 5.15 GHz to 5.85 GHz. It features a total of four antennas with gains of 3 dBi and 4 dBi, delivering a wireless transmission speed of up to 600 Mbit/s. Security protocols include WPA, WPA2, WEP, and various EAP methods for robust protection. Notable features include MIMO technology and Quality of Service (QoS) to enhance network performance.
INTERFACES/PORTS:
It includes Ethernet, Fast Ethernet, and Gigabit Ethernet technologies, with one RJ-45 network port and Power over Ethernet (PoE) support. Other ports such as VGA, HDMI, and USB are not available.
POWER DESCRIPTION:
The access point operates on a 12 V DC input voltage and is powered by an AC adapter.
