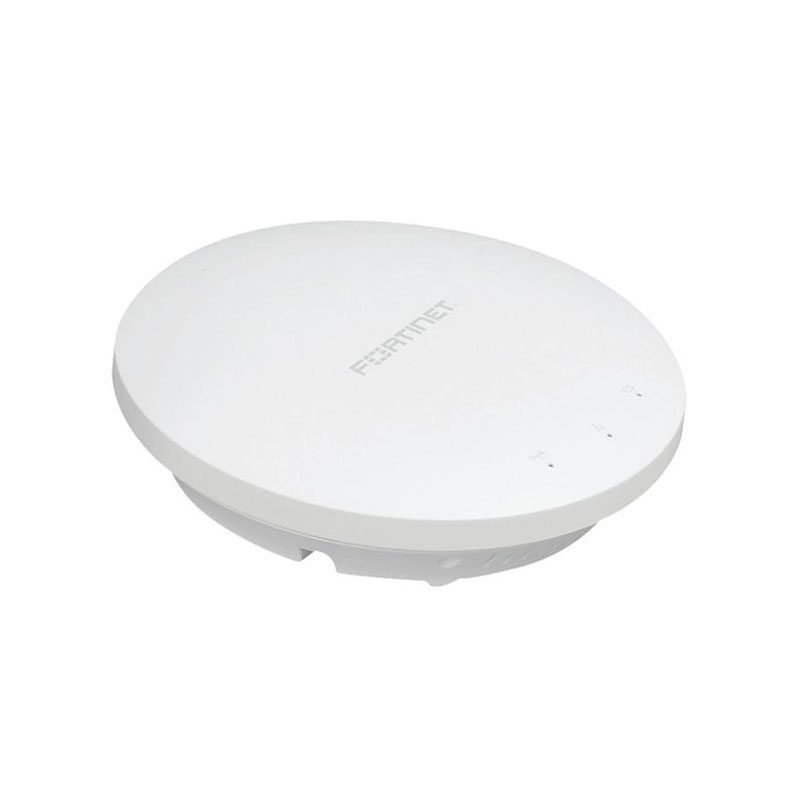

FAP-223B-A Technical Specifications
Fortinet FortiAP 223B Wireless Access Point – 300 Mbps
General
Device Type: Wireless access point
Ruggedized Design: Indoor
Dimensions: 6.5 in x 6.5 in x 2 in
Weight: 12.34 oz
Localization: United States
Networking
Form Factor: External
Connectivity Technology: Wireless
Maximum Data Rate: 600 Mbps
Protocols Supported: IEEE 802.11b, 802.11a, 802.11g, 802.11n
Frequency Bands: 2.4 GHz and 5 GHz
Key Features: Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), TxBF ready, Maximum Likelihood Demodulation (MLD)
Encryption Methods: RC4, AES, PEAP, TKIP, WPA, WPA2, AES-CCMP
Authentication Methods: SSID, MS-CHAP v.2, EAP
Compliance: IEEE 802.11 standards, Wi-Fi CERTIFIED
Antenna
Antenna Type: External detachable
Number of Antennas: 4
Expansion / Connectivity
Ports: 1 x 1000Base-T – RJ-45
Miscellaneous
MTBF: 10 years
Certifications: EN55022, ICES-003, FCC Part 15, and more
Power
Power Over Ethernet (PoE) Support: Yes
Power Source: External adapter
Voltage: AC 120/230 V (50/60 Hz)
Environmental Parameters
Operating Temperature: 32 °F to 104 °F
Humidity: 10 – 90% (non-condensing)
