FTL410QD4C Technical Specifications
40BASE-SR4/10GBASE-SR 300m QSFP+

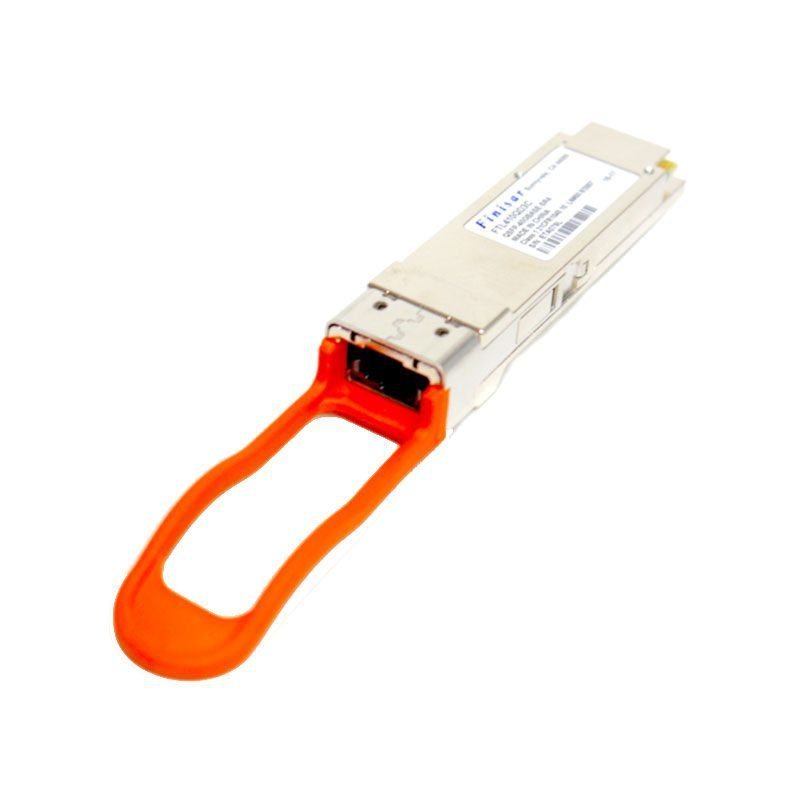

This four-channel full-duplex transceiver module boasts a hot-pluggable QSFP+ form factor. It supports a maximum link length of 300 meters on OM3 multimode fiber (MMF) and extends to 400 meters on OM4 MMF. The device features multirate capabilities ranging from 1.06 Gb/s to 10.5 Gb/s per channel for 10 Gigabit Ethernet applications. It utilizes an unretimed XLPPI electrical interface and has a maximum power dissipation of less than 1W. Built on reliable VCSEL array technology, it includes integrated digital diagnostic functions for monitoring Tx and Rx power. The commercial operating temperature range is specified from 0ºC to 70ºC, and it is equipped with a single 1×12 MPO receptacle.
