FTL410QE2N Technical Specifications

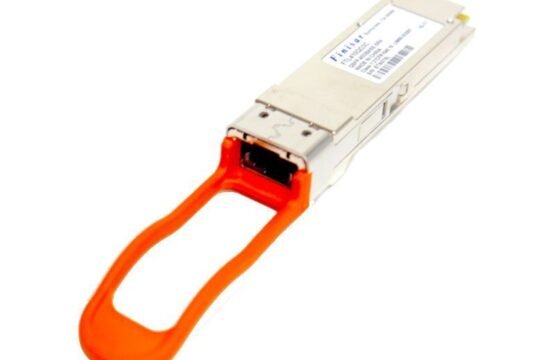

40GBASE-SR4 100m Optical Transceiver
This four-channel full-duplex transceiver module is designed in a hot-pluggable QSFP+ form factor. It supports a maximum link length of 100m on OM3 Multimode Fiber (MMF) and extends to 150m on OM4 MMF. The transceiver features multirate capability, allowing for data rates ranging from 1.06Gb/s to 10.5Gb/s per channel, suitable for 10 Gigabit Ethernet applications. It utilizes an unretimed XLPPI electrical interface and boasts a maximum power dissipation of less than 1.5W. The reliable VCSEL array technology ensures optimal performance, while the extended operating case temperature range of -5°C to 85°C enhances its versatility. This model is equipped with a single 1×12 MPO receptacle, making it a robust choice for high-speed connectivity needs.
