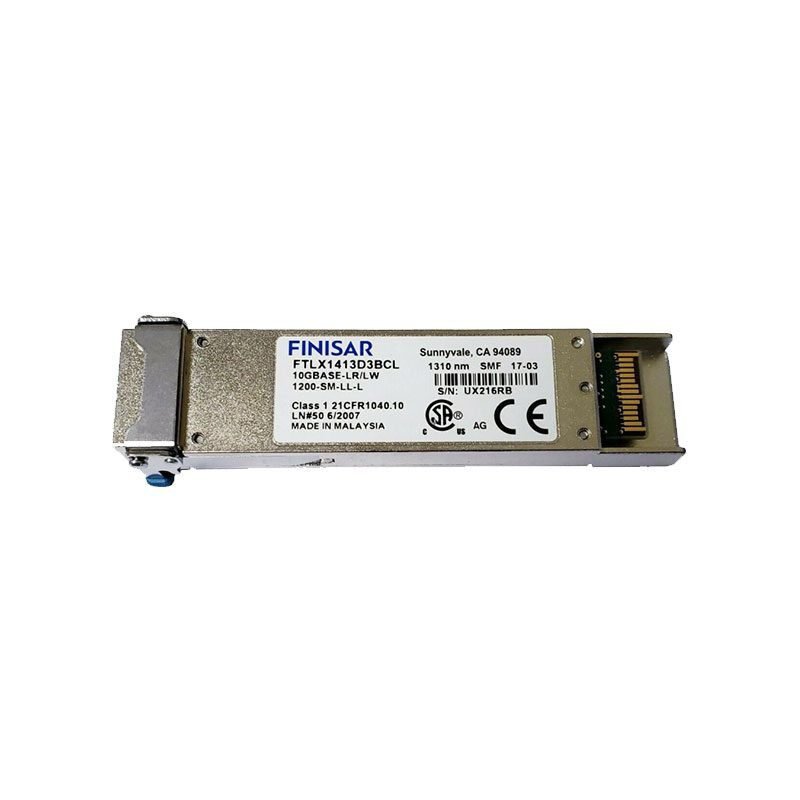

FTLX1413D3BCL Technical Specifications
TX/RX Optical Fiber 10500Mbps 30-Pin
This transceiver supports bit rates ranging from 8.5Gb/s to 10.5Gb/s, making it ideal for 10 Gigabit Ethernet applications. It features a power consumption of less than 1.5W and operates within a commercial temperature range of -5°C to 75°C. The hot-pluggable XFP design allows for easy integration, powered by a single 3.3V supply. The maximum link length achievable is 10km, utilizing an uncooled 1310nm DFB laser through an LC Duplex connector. No reference clock is needed, and it incorporates built-in digital diagnostic functions for enhanced monitoring and management.
