FTLX1672M3BTL Technical Specifications

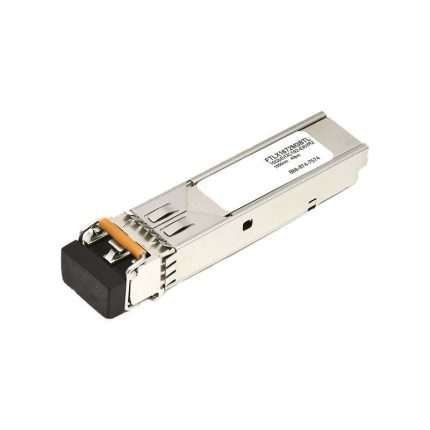

Transceiver Module
This hot-pluggable SFP Plus Transceiver Module is designed for high-speed connectivity. It accommodates bit rates ranging from 8.5 to 11.3Gb/s, optimized for 10 Gigabit Ethernet applications. It is compliant with 10GBASE-ER/EW standards and SONET OC-192/STM-64 IR-2/-3. Supporting Fibre Channel at 8x/10x, it offers a remarkable reach of up to 40km over Single Mode Fiber (SMF) using a cooled 1550nm EML laser. The module is characterized by low power consumption and includes an internal transmitter/receiver CDR. It operates on a single 3.3V power supply and features a limiting electrical interface for the receiver. This transceiver functions effectively within an industrial temperature range of -40°C to 85°C and connects via an LC Duplex connector. Additionally, it incorporates built-in digital diagnostic capabilities.
