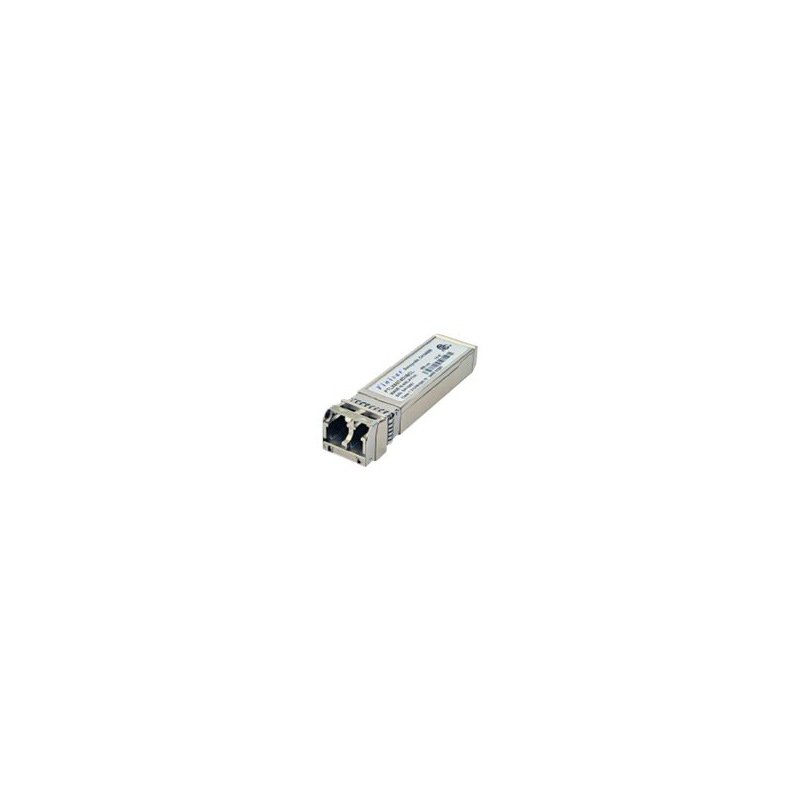

FTLX8574D3BCL Technical Specifications
TX/RX Optical Fiber 10Gbps 20-Pin SFP
This 10Gb/s SFP+ transceiver features a hot-pluggable design and a compact SFP Plus footprint. It supports data rates ranging from 9.95 to 10.5 Gb/s for 10 Gigabit Ethernet applications. The device operates with a power dissipation of less than 1W and is designed to function in a commercial temperature range of -5°C to 70°C. With a maximum link length of 400m on OM4 multimode fiber (MMF), it utilizes an uncooled 850nm VCSEL laser for optimal performance. Additionally, it includes a receiver with a limiting electrical interface and employs an LC Duplex connector. This transceiver also incorporates built-in digital diagnostic functions for enhanced monitoring and management.
