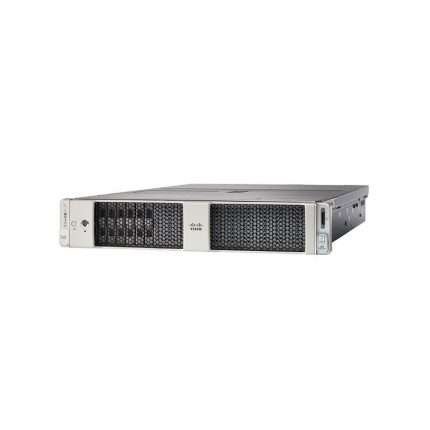

HX-C240-M5SN Technical Specifications
Cisco Systems UCS C240 M5 Server with NVMe & SAS
General Information
Product Name: UCS C240 M5 10 NVMe + 16 SAS SATA SFF
Manufacturer Part Number: HX-C240-M5SN
Product Series: C240 M5
Product Type: Barebone System
Interfaces/Ports
Total Number of USB Ports: 2
Number of USB 3.0 Ports: 2
Controllers
Controller Type: 12Gb/s SAS
RAID Supported: Yes
Display & Graphics
Graphics Controller Manufacturer: Matrox
Graphics Controller Model: G200e
Graphics Memory Capacity: 8 MB
I/O Expansions
Number of Total Expansion Bays: 26 Bays
Number of Internal 2.5″ Bays: 16
Memory
Maximum Memory: 3 TB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-2666/PC4-21300
Number of Total Memory Slots: 24 x DDR4 RAM Slots
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet, Gigabit Ethernet
Power Description
Input Voltage: 120 V AC, 230 V AC
Processor & Chipset
Number of Processors Supported: 2
Processor Supported: Xeon Platinum, Xeon Gold, Xeon Silver, Xeon Bronze
64-bit Processing: Yes
Chipset Manufacturer: Intel
Chipset Model: C620
