HX-SP-240M4S-BP1 Technical Specifications

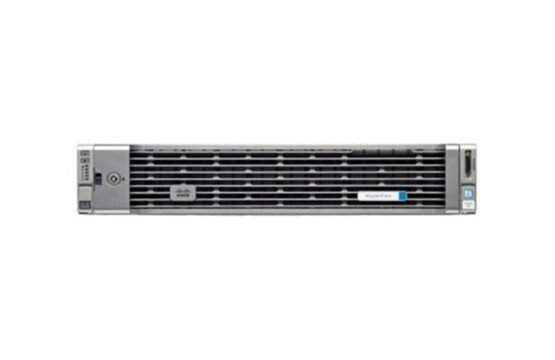

Cisco UCS Smart Play HX240c Hyperflex System
Bay Configuration
Form Factor: 2.5″ SFF
Total Quantity: 24 Bays
Cabling
Connectivity Type: 10GBASE-CU SFP+ Cable
Cable Details
Quantity: 2
Cache Memory
Installed Size: 70 MB (35 MB per processor)
Chassis
Rack-mountable Form Factor
Hot-Swap Bays: 24
Drive Form Factor: 2.5″ (6.4 cm)
Drive Interface: SAS
Dimensions & Weight
Depth: 29.1 in
Height: 3.4 in
Width: 17.6 in
Environmental Parameters
Operating Humidity: 10 – 90% (non-condensing)
Max Operating Temperature: 95 °F
Min Operating Temperature: 41 °F
Hard Drive
Installed Quantity: 1 SSD (120 GB Boot Drive)
15 HDDs of 1.2 TB (Hot-swap, 10000 rpm)
Processor
Clock Speed: 2.6 GHz, 14-core Intel Xeon E5-2690V4
Server Scalability: 2-way
Power Supply
Power Redundancy: Yes, 1200 Watt, hot-plug
Networking
10 Gigabit Ethernet, Remote Management via Cisco Integrated Management Controller.
