HX-SP-240M4SBE1-1A Technical Specifications

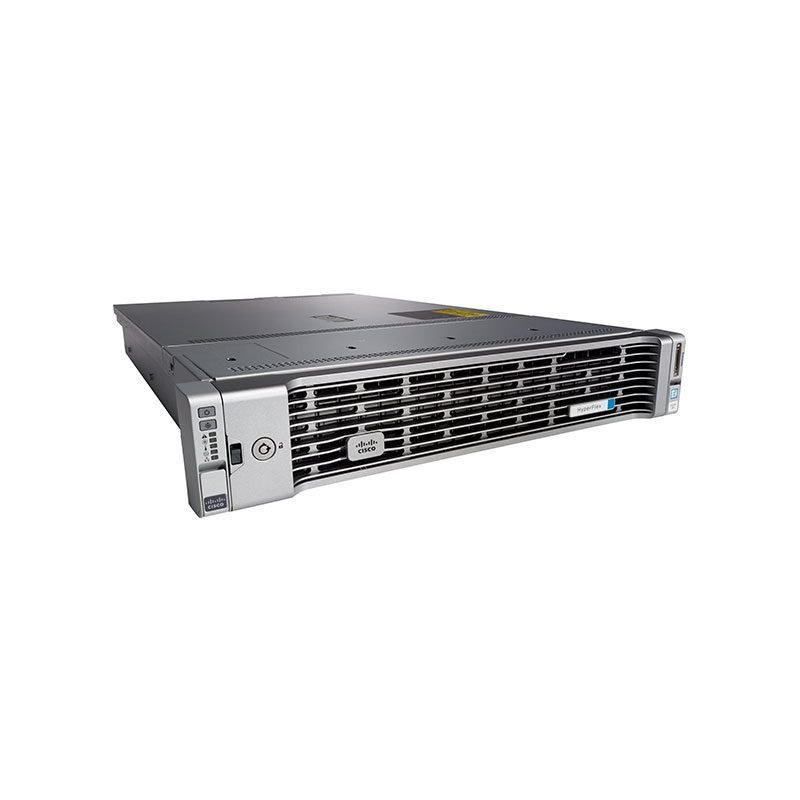

Cisco UCS Smart Play HX240c Hyperflex System
Bay Configuration
Form Factor: 2.5″ SFF
Total Quantity: 24
Cache Memory
Installed Size: 40 MB
Per Processor Size: 20 MB
Type: L3 cache
Chassis Details
Form Factor: Rack-mountable
Hot-Swap Bays Quantity: 24
Drive Interface: SAS
Dimensions & Weight
Depth: 29.1 in
Height: 3.4 in
Width: 17.6 in
Environmental Conditions
Operating Humidity: 10 – 90% (non-condensing)
Max Operating Temperature: 95 °F
Min Operating Temperature: 41 °F
Expansion Options
Form Factor (metric): 6.4 cm SFF
Type: Hot-swap
Networking Features
Data Link Protocols: 10 Gigabit Ethernet, FCoE, Gigabit Ethernet
Ethernet Controller: Cisco UCS Virtual Interface Card 1227
Power Specifications
Nominal Voltage: AC 200/240 V
Power Supply: 1400 Watt, hot-plug
Processor Information
Clock Speed: 1.7 GHz
Installed Quantity: 2
Processor Type: Xeon E5-2609V4, 8-core
RAM Details
Installed Size: 256 GB
Max Supported Size: 1536 GB
Memory Speed: 2400 MHz
