HX-SP-240M4SBE1-3A Technical Specifications

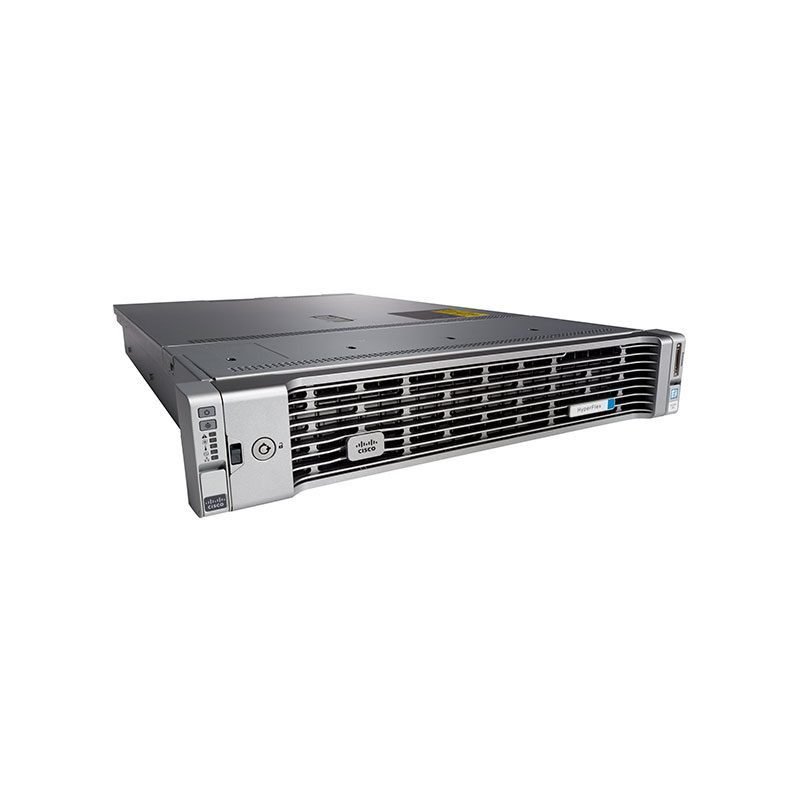

Cisco UCS Smart Play HX240c Hyperflex System
Bay Configuration
Form Factor: 2.5″ SFF
Total Quantity: 24 Bays
Cache Memory
Installed Size: 40 MB (per processor: 20 MB)
Type: L3 cache
Chassis Features
Form Factor: Rack-mountable
Hot-Swap Bays: 24
Manufacturer Form Factor: Rack mounting Kit
Server Storage Bays: Hot-swap
Server Drive Interface: SAS
Dimensions & Weight
Depth: 29.1 in
Height: 3.4 in
Width: 17.6 in
Environmental Parameters
Humidity Range Operating: 10 – 90% (non-condensing)
Max Operating Temperature: 95 °F
Min Operating Temperature: 41 °F
Expansion Capabilities
Form Factor (metric): 6.4 cm SFF
Type: Hot-swap
Networking Features
Data Link Protocol: 10 Gigabit Ethernet, Gigabit Ethernet
Ethernet Ports: 2 x Gigabit, 2 x SFP+
Remote Management: Cisco Integrated Management Controller
Power Specifications
Installed Quantity: 2
Power Provided: 1400 Watt
Power Redundancy: Yes
Processor Specifications
Clock Speed: 1.7 GHz
Installed Quantity: 2 (Intel Xeon E5-2609V4)
Memory Configuration
Installed Size: 256 GB (8 x 32 GB, DDR4 SDRAM)
Max Supported Size: 1536 GB
Memory Speed: 2400 MHz.
