HX-SP-240M4SBP1-1A Technical Specifications

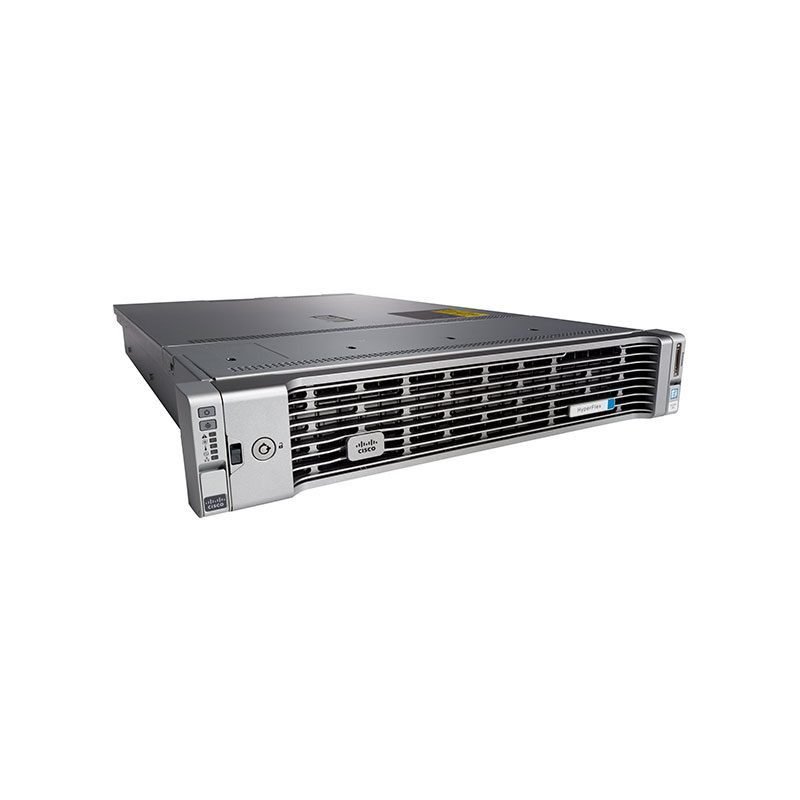

Cisco UCS Smart Play HX240c Hyperflex System
Bay Configuration
Form Factor: 2.5″ SFF
Total Quantity: 24 Bays
Cache Memory
Installed Size: 70 MB
Per Processor Size: 35 MB
Type: L3 Cache
Chassis
Form Factor: Rack-mountable
Hot-Swap Bays Quantity: 24
Server Storage Bays: Hot swap
Drive Interface: SAS
Dimensions & Weight
Depth: 29.1 in
Height: 3.4 in
Width: 17.6 in
Environmental Parameters
Operating Humidity Range: 10 – 90% (non-condensing)
Max Operating Temperature: 95 °F
Min Operating Temperature: 41 °F
Expansion Bays
Form Factor (metric): 6.4 cm SFF
Type: Hot swap
Hard Drive Configuration
Installed Quantity: 1
Interface Class: Serial SATA
Type: SSD
Second Hard Drive Capacity: 120 GB (Boot drive)
Third Hard Drive Capacity: 1.2 TB, Installed Qty: 15, Type: HDD, Spindle Speed: 10000 rpm, Removable: Hot-swap
Header
Brand: Cisco
Model: Smart Play Select HX240c Hyperflex System
Packaged Quantity: 1
Networking
Ethernet Protocols: 10 Gigabit Ethernet, Gigabit Ethernet
Remote Management: Cisco Integrated Management Controller
Power Device
Installed Quantity: 2, Power Provided: 1400 Watt, Redundancy: Yes
