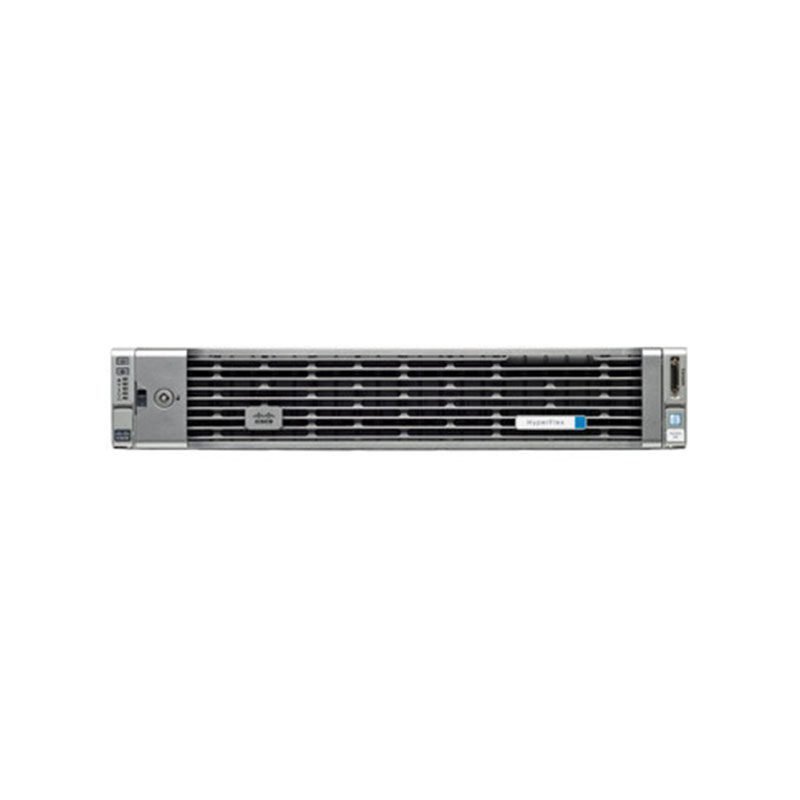

HX-SP-240M4SXV1-5A Technical Specifications
Cisco UCS Smart Play HX240c Hyperflex System
Bay Provided
Form Factor: 2.5″ SFF
Total Quantity: 24 Bays
Cache Memory
Installed Size: 50 MB
Per Processor Size: 25 MB
Chassis
Rack-mountable Form Factor
Hot-Swap Bays Quantity: 24
Server Storage Bays: Hot swap
Drive Form Factor: 2.5″ (6.4 cm)
Drive Interface: SAS
Cluster
RAID Level: JBOD
Dimensions & Weight
Depth: 29.1 in
Height: 3.4 in
Width: 17.6 in
Environmental Parameters
Operating Humidity Range: 10 – 90% (non-condensing)
Max Operating Temperature: 95 °F
Min Operating Temperature: 41 °F
Expansion Bays
Form Factor: 6.4 cm SFF
Type: Hot-swap
Expansion Slots
Types: CPU, DIMM 288-pin, PCIe, Internal SD card
Hard Drive
Installed Quantity: 15
Interface Class: Serial Attached SCSI
Hot-swap Capability: Yes
Spindle Speed: 10000 rpm
Type: HDD
Header
Brand: Cisco
Compatibility: PC
Model: Smart Play Select HX240c Hyperflex System
Networking
Data Link Protocol: 10 Gigabit Ethernet, Gigabit Ethernet
Ethernet Ports: 2 x Gigabit Ethernet, 2 x SFP+
Power Device
Nominal Voltage: AC 120/230 V
Power Provided: 1200 Watt
Power Redundancy: Yes
