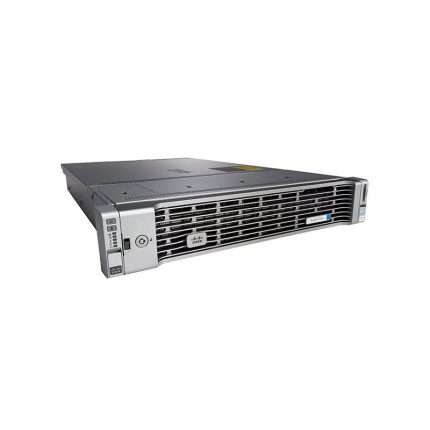

HXAF-SP-240M4S-BP Technical Specifications
Cisco UCS Smart Play Select HXAF240c Hyperflex
Bay Provided
Form Factor: 2.5″ SFF
Total Quantity: 24
Cable
Connectivity Type: 10GBASE-CU SFP+ Cable
Cable Details
Quantity: 2
Cache Memory
Installed Size: 70 MB (35 MB per processor)
Chassis
Form Factor: Rack-mountable
Hot-Swap Bays: 24
Dimensions & Weight
Depth: 29.1 in
Height: 3.4 in
Width: 17.6 in
Environmental Parameters
Operating Humidity: 10 – 90% (non-condensing)
Max Operating Temperature: 95 °F
Min Operating Temperature: 41 °F
Expansion Slots
Types: CPU, DIMM 288-pin, PCIe, SD card (internal)
Hard Drive
Installed Quantity: 10, with SSDs of 400 GB and 120 GB for enterprise performance and boot drive respectively
Networking
Protocols: 10 Gigabit Ethernet, FCoE, Gigabit Ethernet
Power Device
Power Supply: 1200 Watt, hot-plug with redundancy
Processor
Intel E5-2690V4, 14-core, with up to 3.5 GHz Turbo speed
RAM
Installed Size: 512 GB, with a maximum of 1536 GB possible.
