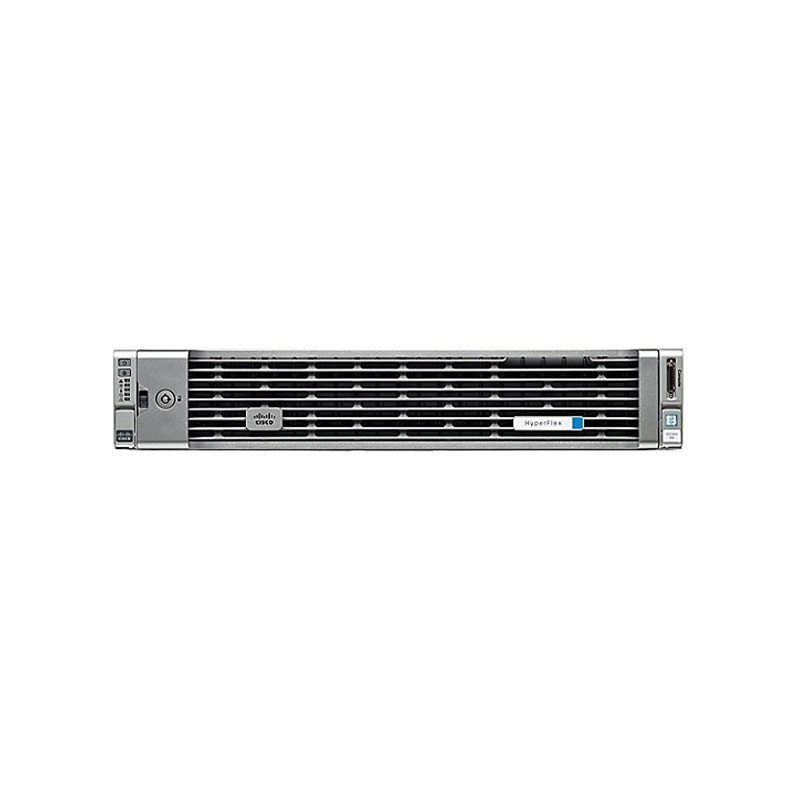

HXAF-SP-240M5SX-V Technical Specifications
Cisco UCS Smart Play Select HXAF240c Hyperflex
Bay Configuration
Form Factor: 2.5″ SFF
Total Quantity: 24
Cache Memory
Installed Size: 27.5 MB
Per Processor Size: 13.75 MB
Type: L3 Cache
Chassis Details
Form Factor: Rack-mountable
Hot-Swap Bays: 24
Drive Interface: SATA/SAS
Dimensions & Weight
Depth: 29.1 in
Height: 3.4 in
Width: 17.6 in
Environmental Parameters
Operating Humidity: 8 – 90% (non-condensing)
Max Operating Temperature: 95 °F
Min Operating Temperature: 50 °F
Sound Emission: 43 dBA
Expansion Capabilities
Type: Hot-swap, Internal
Networking Features
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controllers: Cisco UCS Virtual Interface Card 1387, Intel X550
Remote Management: Cisco Integrated Management Controller
Power Supply
Type: Hot-plug, Power redundancy available
Processor Specifications
Clock Speed: 2.2 GHz
Installed Quantity: 2
Processor Type: Xeon Silver 4114, 10-core
Memory Configuration
Installed Size: 384 GB, 12 x 32 GB
Max Supported Size: 3 TB
Memory Speed: 2400 MHz
