MZ-V7S500B/AM Technical Specifications

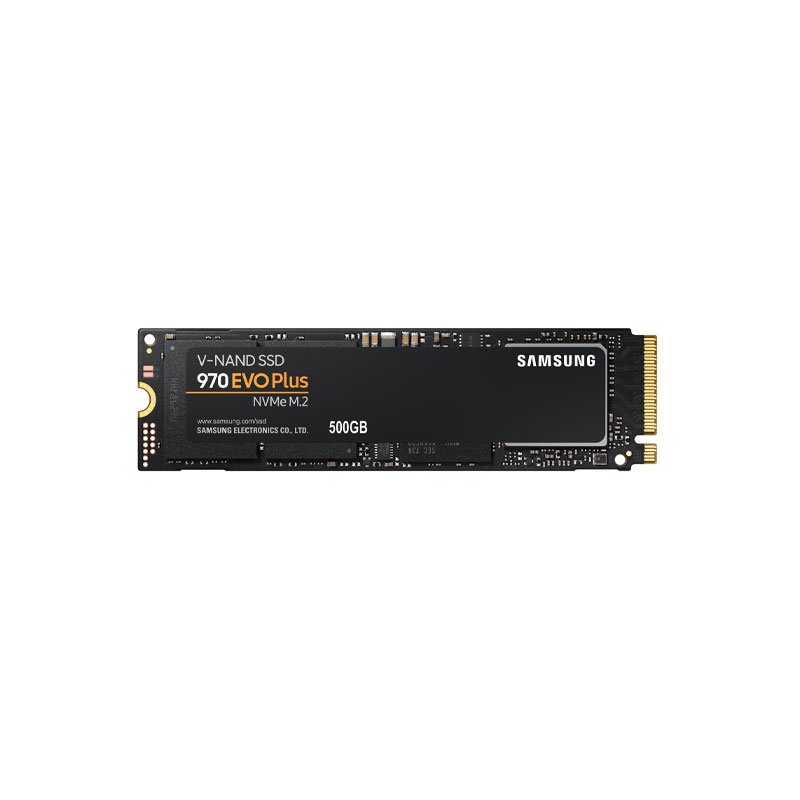

Samsung Evo Plus Series 500GB M.2 NVMe Internal Solid State Drive
MAIN SPECIFICATIONS:
Product Description: Samsung 970 Evo Plus MZ-V7S500B – Internal Solid State Drive with 500GB capacity and PCIe Express 3.0 x4 (NVMe) interface.
Type: Internal Solid State Drive (SSD)
Capacity: 500GB
Hardware Encryption: Supported
Encryption Algorithm: 256-Bit AES
NAND Flash Memory Type: Multi-Level Cell (MLC)
Form Factor: M.2 2280
Interface: PCI Express 3.0 x4 (NVMe)
Data Transfer Rate: Up to 600 MB/s
Buffer Size: 512 MB
Features: Supports TRIM, Sleep Mode, Auto Garbage Collection, V-NAND Technology, NVMe 1.3, Samsung Phoenix Controller, and S.M.A.R.T.
Dimensions (W x D x H): 0.9 in x 3.2 in x 0.1 in
Weight: 0.28 oz
EXTENDED SPECIFICATIONS:
Device Type: Internal Solid State Drive
Capacity: 500 GB
Hardware Encryption: Yes
Encryption Algorithm: 256-Bit AES
NAND Flash Memory Type: MLC
Form Factor: M.2 2280
Interface: PCI Express 3.0 x4 (NVMe)
Buffer Size: 512 MB
Features: TRIM Support, Sleep Mode, Auto Garbage Collection, V-NAND Technology, NVMe 1.3, Samsung Phoenix Controller, S.M.A.R.T.
Width: 0.9 in
Depth: 3.2 in
Height: 0.1 in
Weight: 0.28 oz
PERFORMANCE:
SSD Endurance: 300 TB
Internal Data Rate: 3500 MB/s (Read) / 3200 MB/s (Write)
4KB Random Read: 19000 IOPS
4KB Random Write: 60000 IOPS
Maximum 4KB Random Write: 550000 IOPS
Maximum 4KB Random Read: 480000 IOPS
